Sunroof Air Deflector Replacement

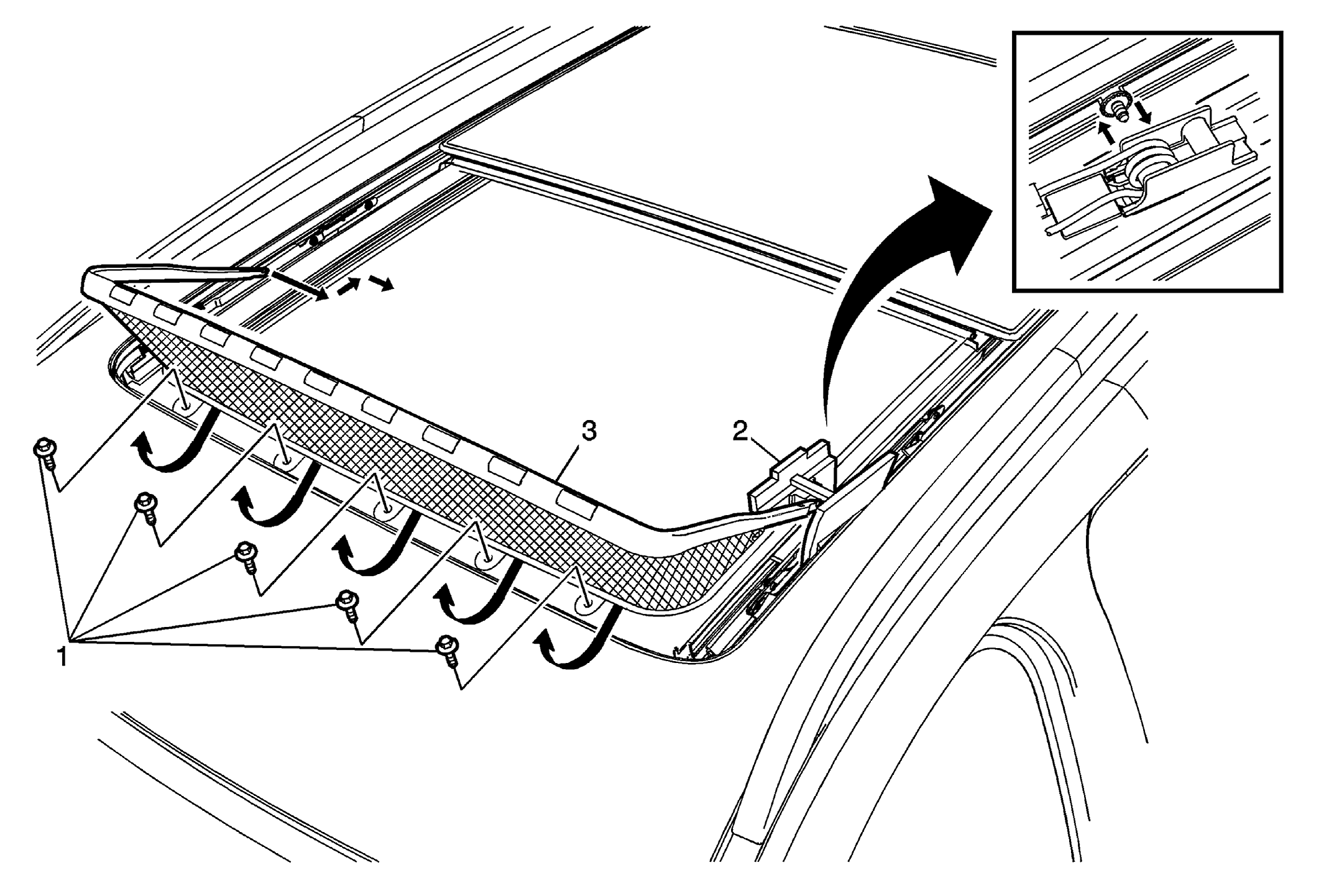

| Callout | Component Name |
|---|---|
| 1 | Sunroof Deflector Fastener (Qty:5)
CAUTION:
Refer to Fastener Caution . Procedure Open the front sunroof window. Tighten 4 N.m (35 lb in) |
| 2 | Sunroof Deflector Rear Bracket (Qty:2) Procedure Position the deflector over and rearward. Lift up on the front tab of the bracket and slide forward to remove from frame. After the front fasteners are removed, the deflector must be rolled rearward in order to access the brackets. |
| 3 | Sunroof Deflector Procedure Install the deflector rear brackets on each side first. Then install the front part of the deflector and fasteners.
NOTE:
Verify the operation of the sunroof window to the deflector to ensure no binding. |
