Sunroof Air Deflector Cover Replacement

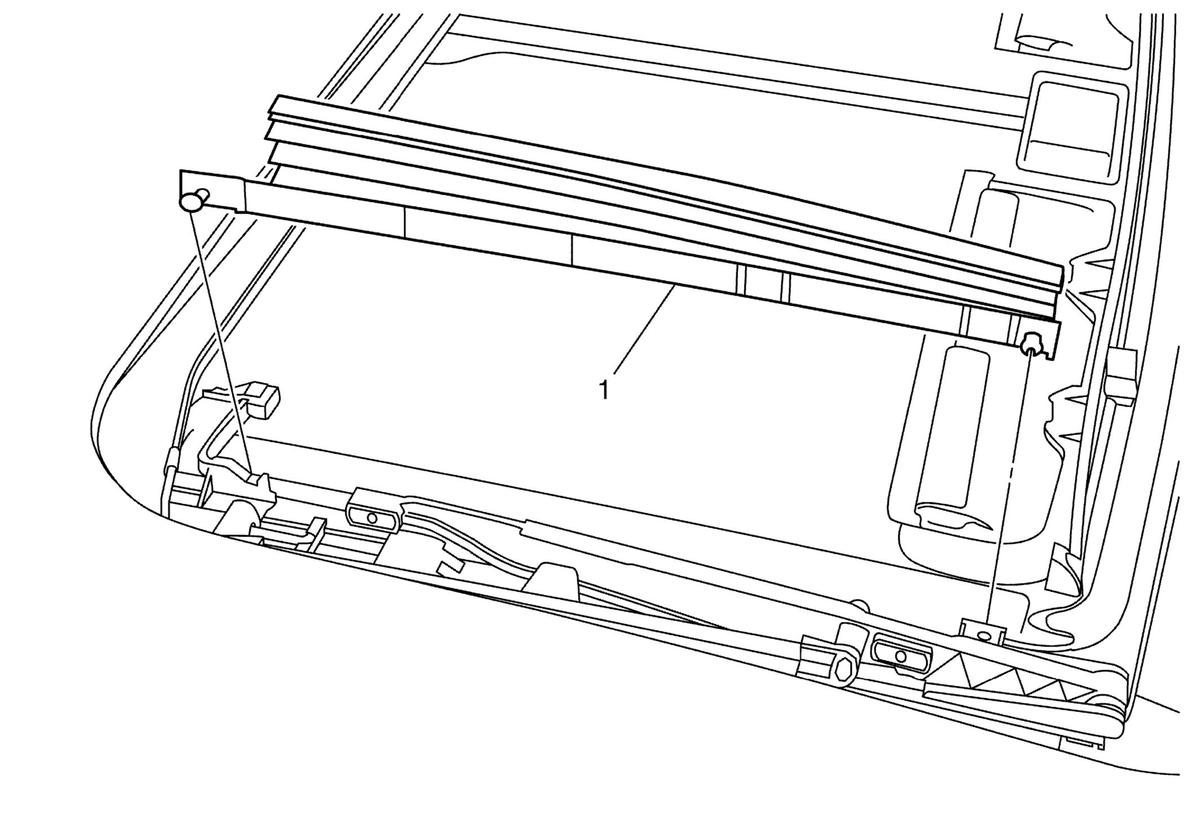

Fig 1: Sunroof Air Deflector Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Sunroof Air Deflector Cover Procedure Place the sunroof window in the vent position. Move the sunshade to the maximum rear position. Unclip the sunroof air deflector cover in front. Unclip the sunroof air deflector cover in rear. Remove the air deflector.
