Sunroof Actuator Trim Plate Replacement
Sunroof Actuator Trim Plate Replacement

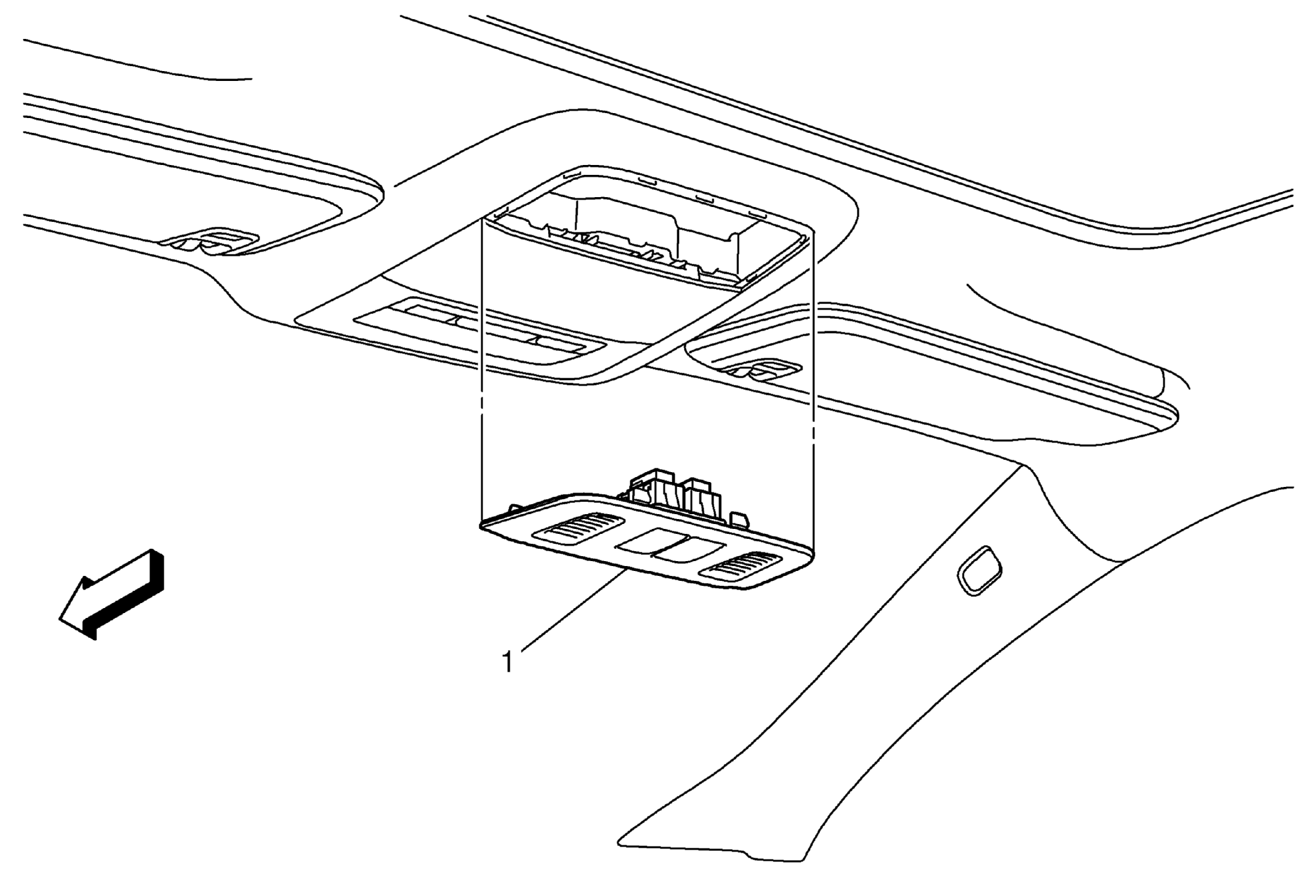

Fig 1: Sunroof Actuator Trim Cover
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Sunroof Actuator Trim Cover
Procedure
Disconnect the electrical connector.
TIP:
Carefully use a flat-bladed tool to release the retainer from the sunroof actuator trim cover to the roof console.
