Power, Ground, Serial Data, and Controls (CZ2)

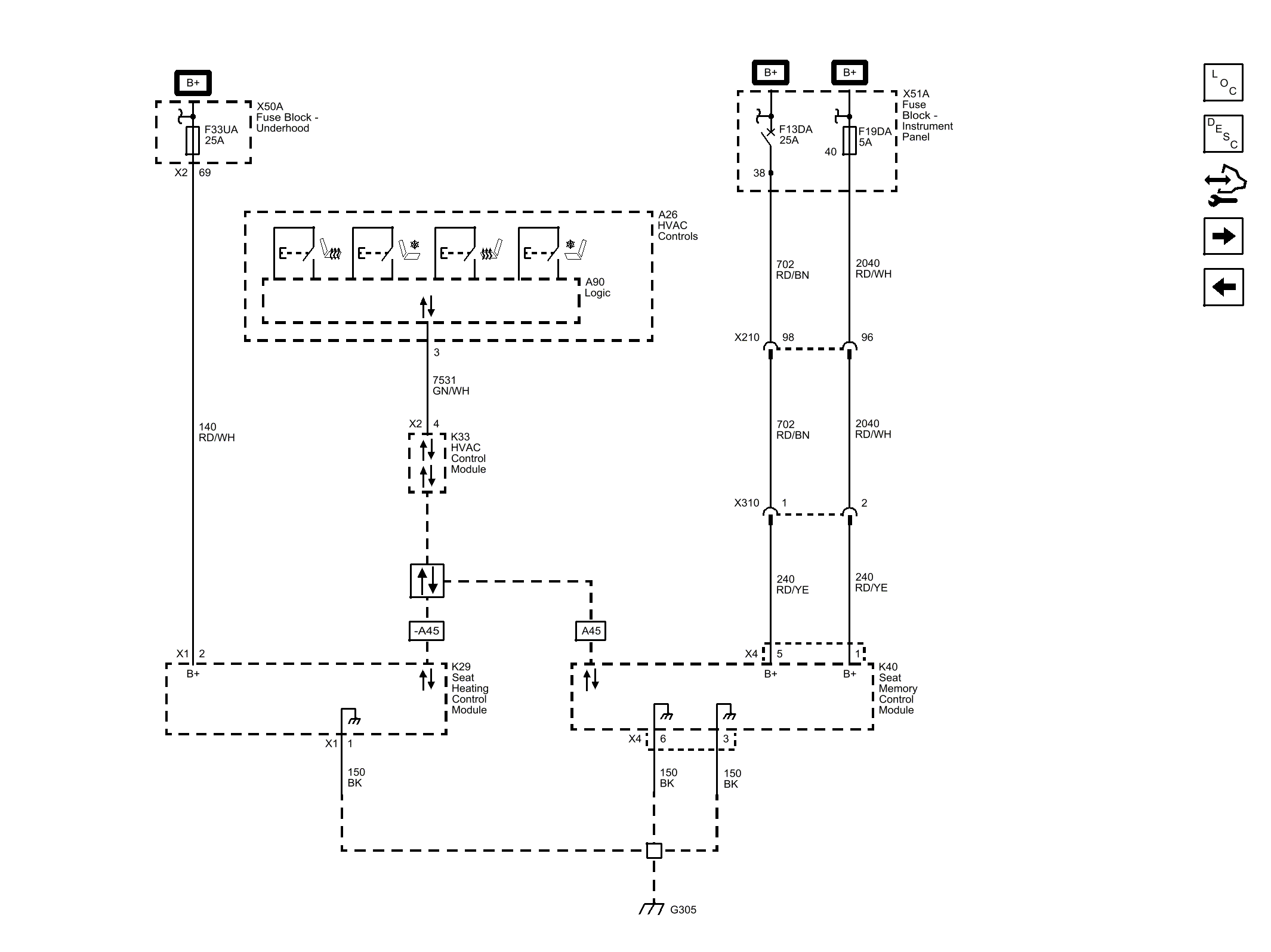

Fig 1: Power, Ground, Serial Data, and Controls (CZ2)

GM3770267

Courtesy of GENERAL MOTORS COMPANY
