Rear Seat Latch Replacement

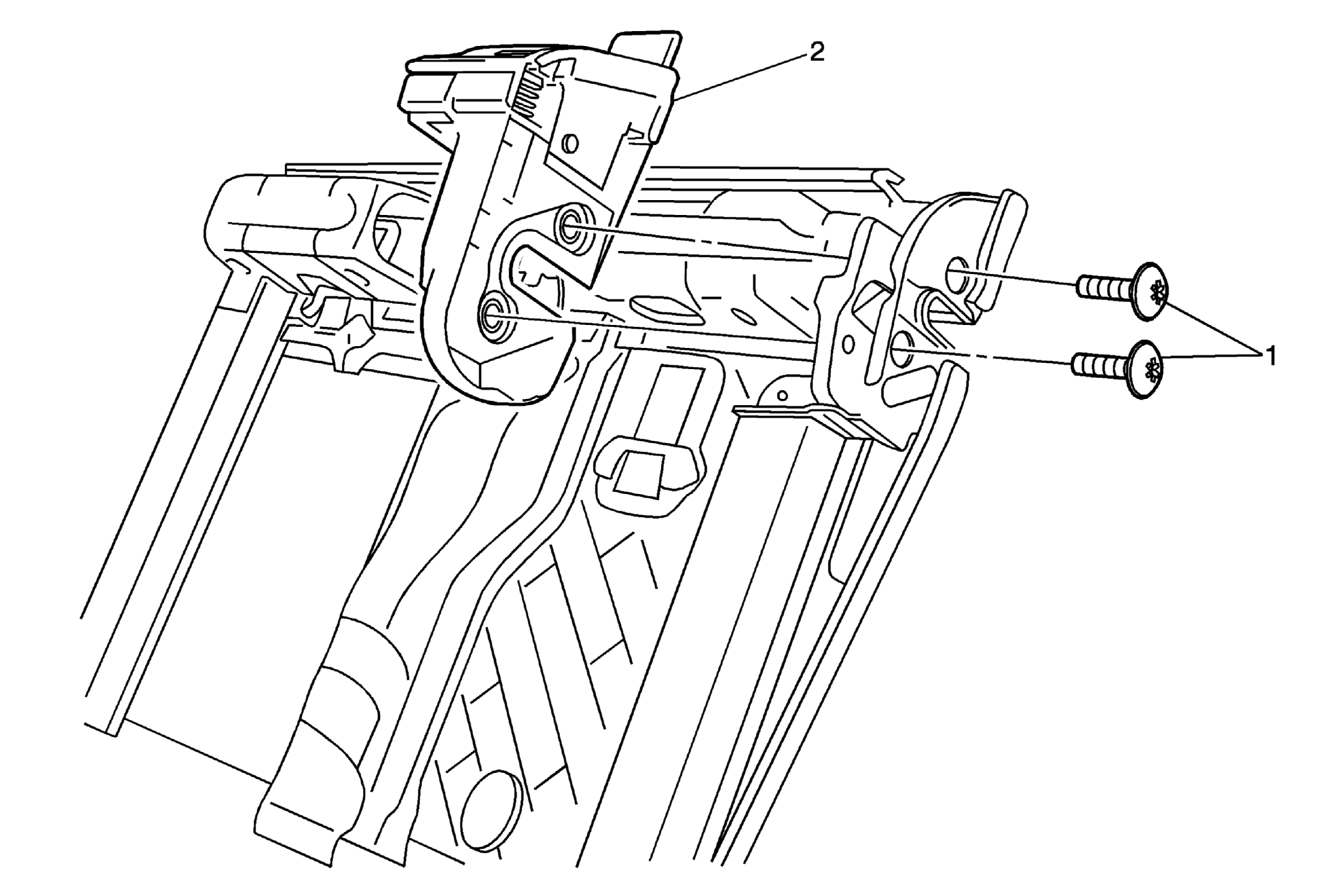

Fig 1: Rear Seat Latch & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60% Side) or Rear Seat Back Cushion Cover and Pad Replacement (40% Side) .
1	Rear Seat Latch Fastener (Qty:2) CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Latch
