Rear Seat Cushion Frame Retainer Replacement

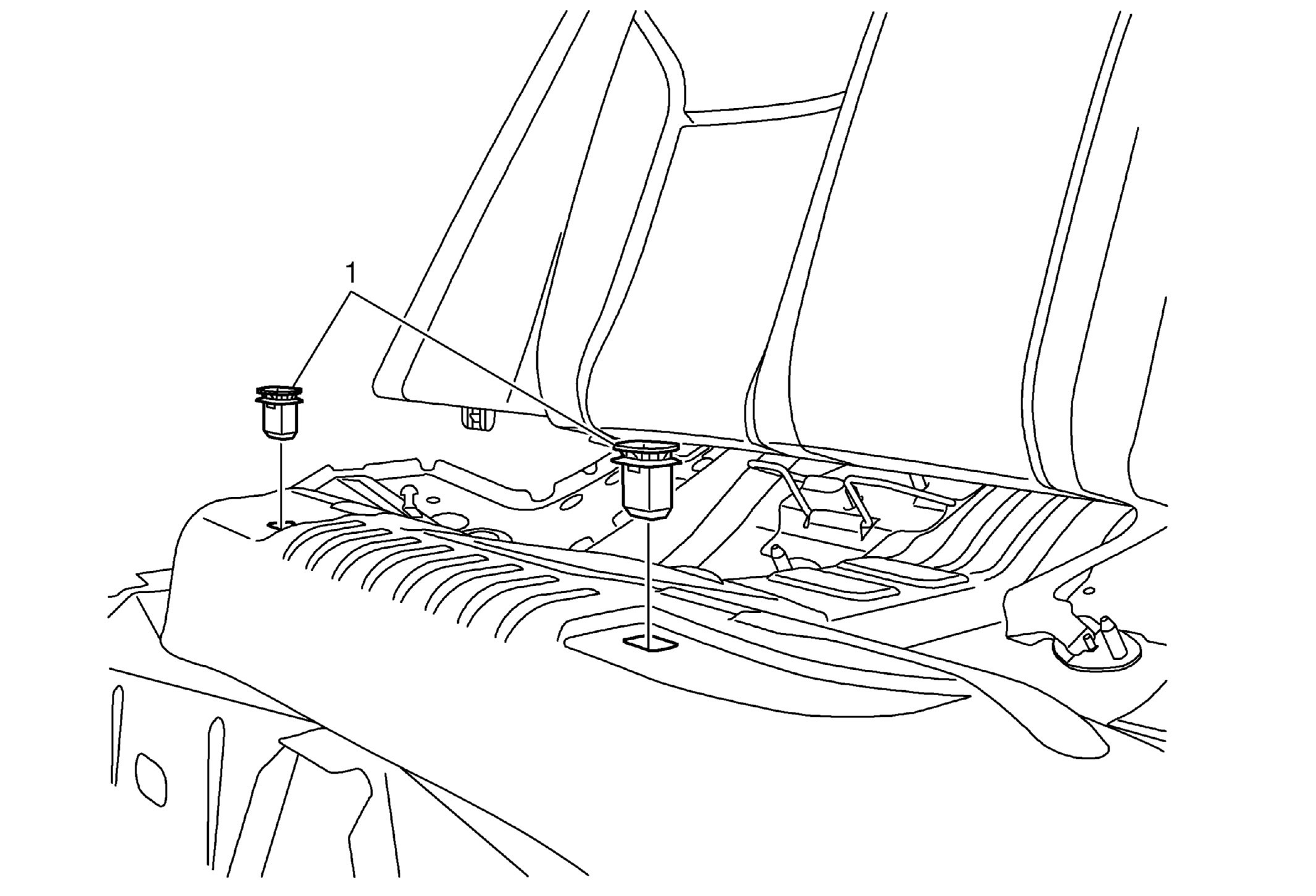

Fig 1: Rear Seat Cushion Frame Retainers
GM2019846Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
1 Rear Seat Cushion Frame Retainer
Procedure
Using a suitable flat-bladed tool, remove the rear seat cushion frame retainer.
