Rear Seat Back Cushion Pivot Support Replacement

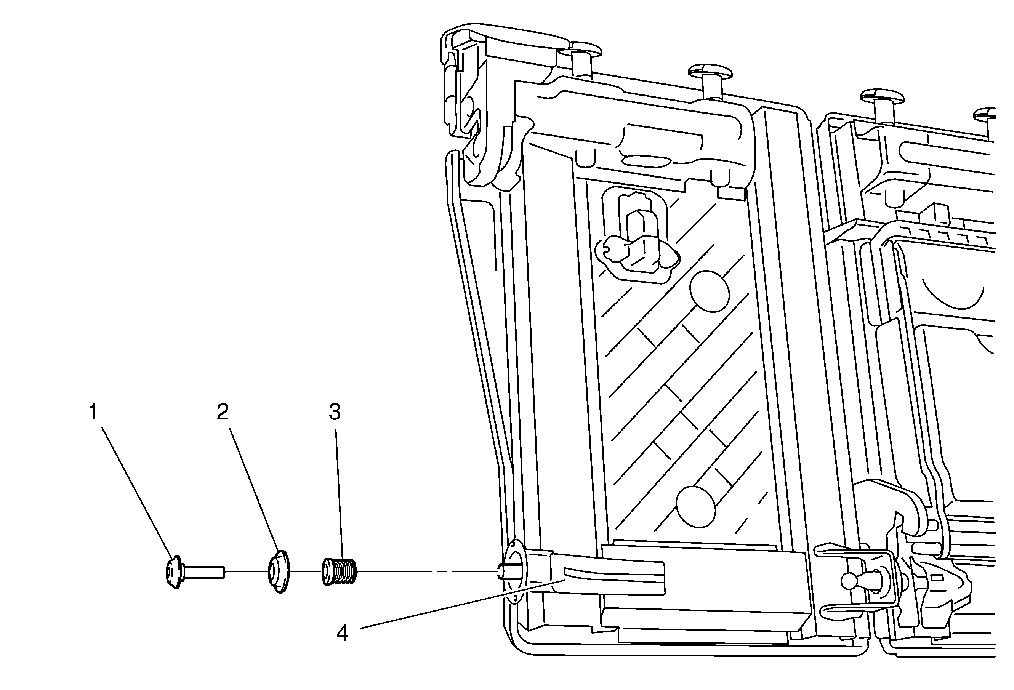

Fig 1: Rear Seat Back Cushion Pivot Support, Housing, Spring & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (40% Side) .
1	Rear Seat Back Outer Pivot Bolt CAUTION: Refer to Fastener Caution . Tighten  20 N.m (15 lb ft)
2	Rear Seat Back Cushion Pivot Support
3	Rear Seat Back Cushion Outer Pivot Bolt Spring
4	Rear Seat Back Cushion Pivot Support Housing
