Rear Seat Back Cushion Latch Release Handle Replacement

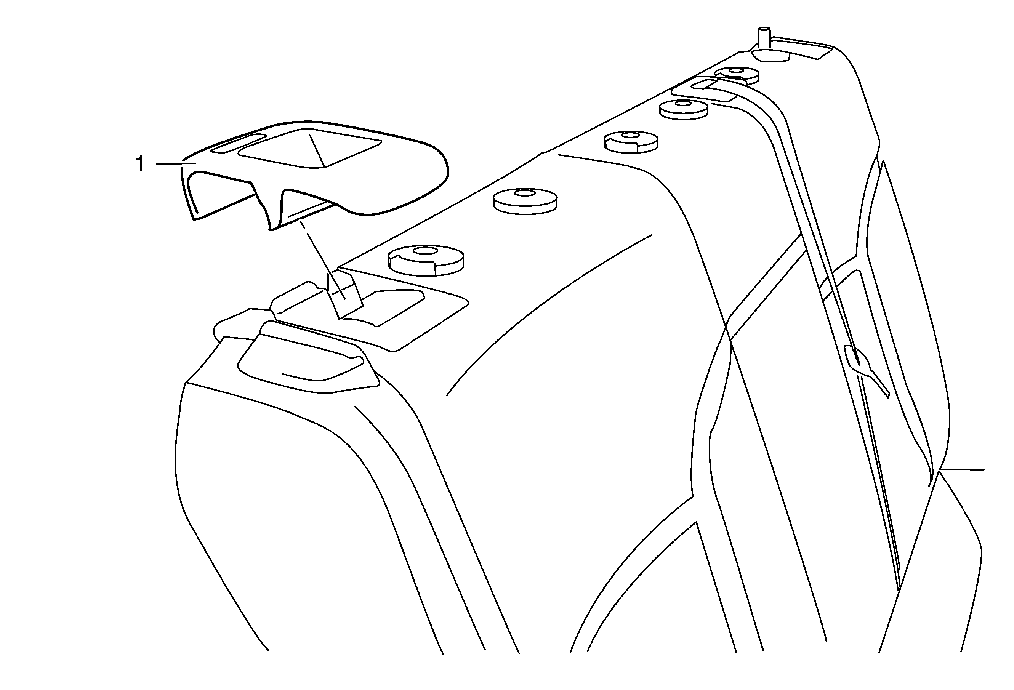

Fig 1: Rear Seat Back Cushion Latch Release Handle
GM2019871Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Back Cushion Latch Release Handle
Procedure
Release the rear seat back cushion latch release handle using a suitable flat-bladed tool.
