Rear Seat Back Cushion Hinge Replacement

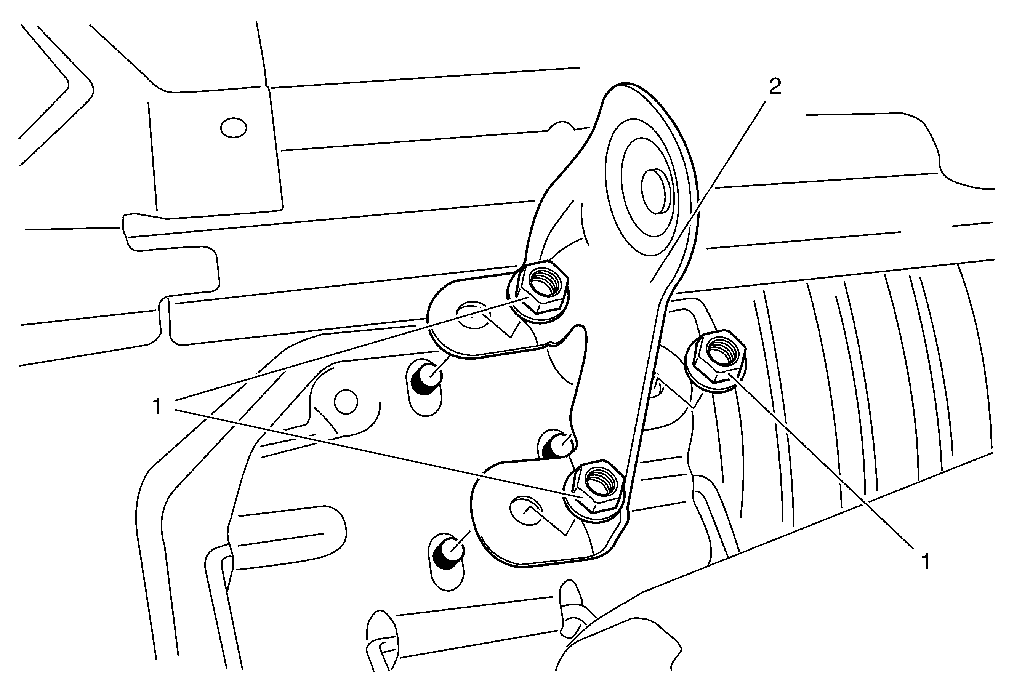

Fig 1: Rear Seat Back Cushion Hinge & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove both rear seat back cushions. Refer to Rear Seat Back Cushion Removal and Installation (40% Side) .
1	Rear Seat Back Cushion Hinge Fastener ( Qty:3 ) CAUTION: Refer to Fastener Caution . Tighten  43 N.m (32 lb ft)
2	Rear Seat Back Cushion Hinge Procedure  Detach the rear seat back cushion hinge from the guide pin.
