Rear Seat Armrest Multifunction Compartment Armrest Replacement

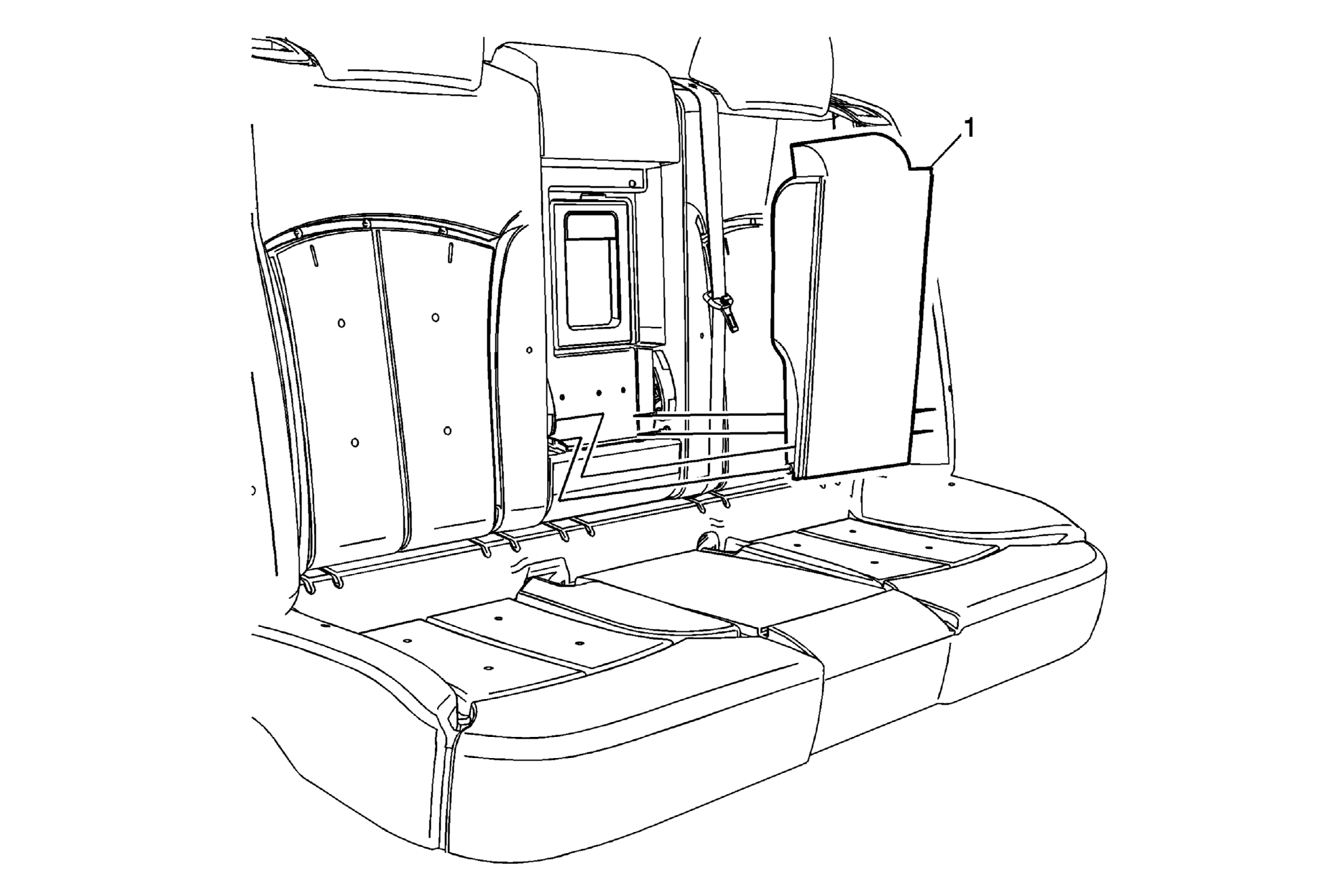

Fig 1: Rear Seat Armrest Multifunction Compartment Armrest
GM2213485Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Armrest Multifunction Compartment.

Procedure

  1. Disengage the pass through door assembly, if equipped.
  2. Remove the armrest hinges from the rear seat back cushion panel.
