Front Seat Head Restraint Guide Bezel Replacement (8-Way Power)

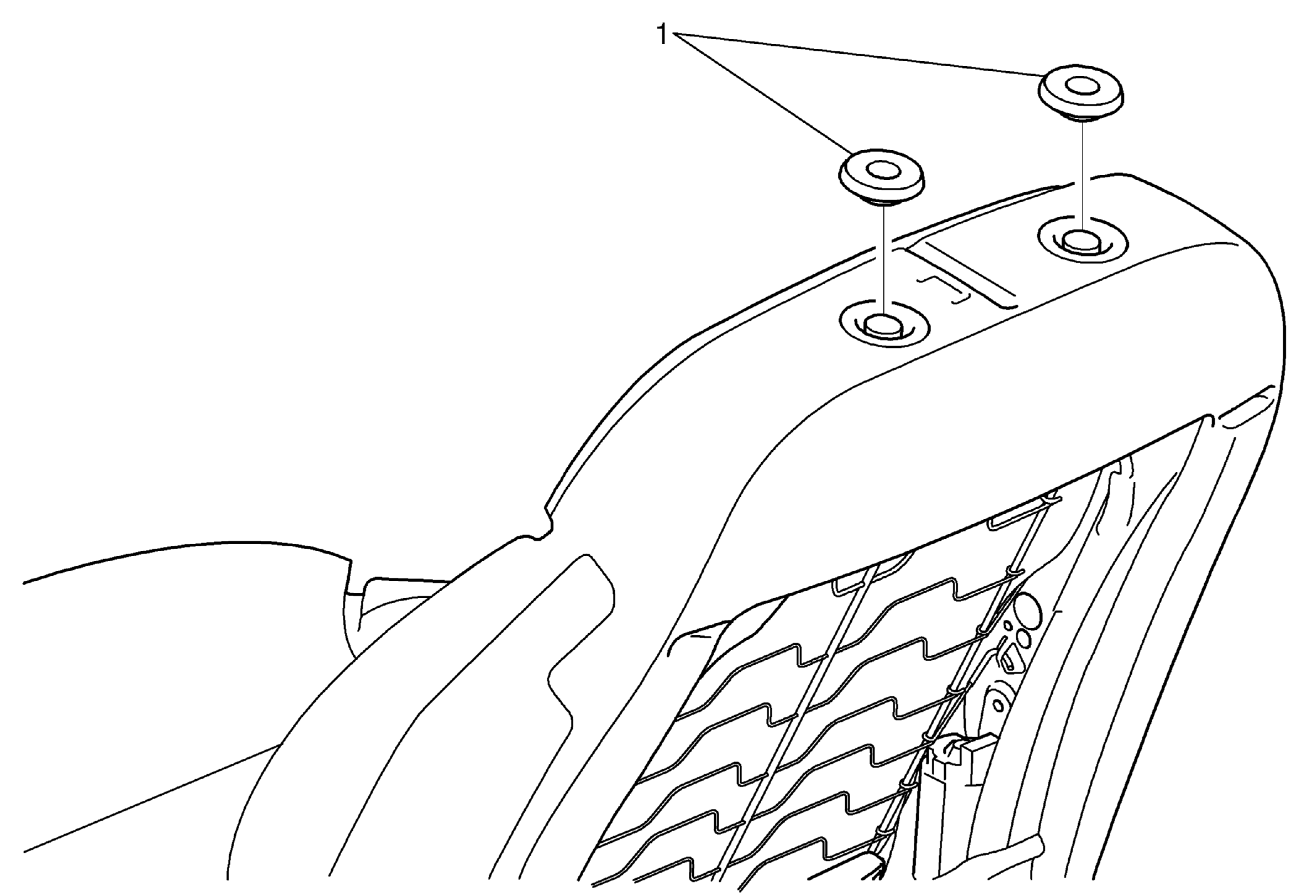

Fig 1: Front Seat Head Restraint Guide Bezel (8-Way Power)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the driver or passenger seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement (without AHS) .
1	Front Seat Head Restraint Guide Bezel TIP:  Twist the bezel to remove.
