Driver or Passenger Seat Cushion Pad Wire Replacement (2-Way, 4-Way Hybrid)

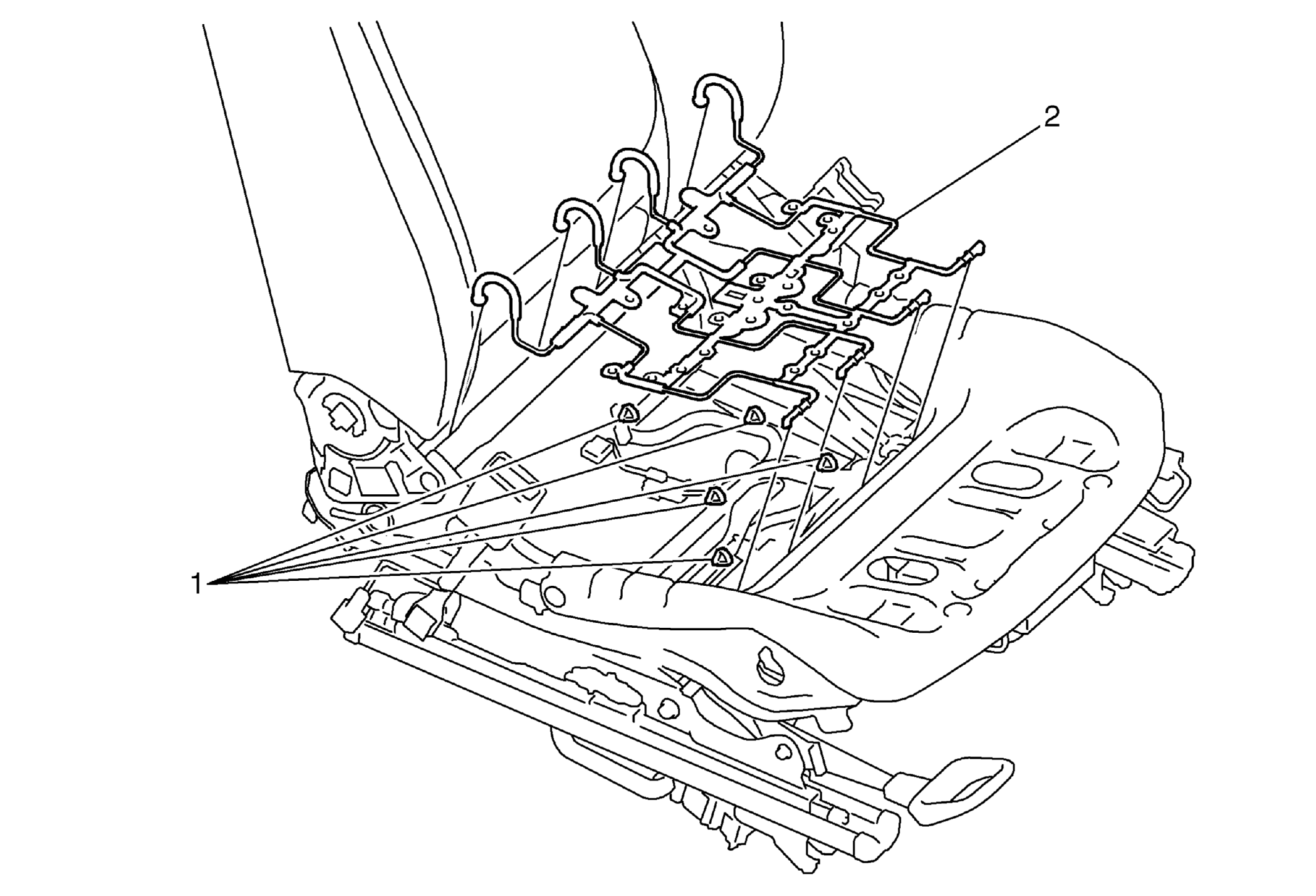

Fig 1: Driver or Passenger Seat Cushion Pad Wire (2-Way, 4-Way Hybrid)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning WARNING: To avoid personal injuries, re-zero the passenger presence system whenever you remove or replace the seat cushion or trim. Failure to do so may cause the system to malfunction. Preliminary Procedures Remove the front seat cushion pad. Refer to Driver or Passenger Seat Cushion Pad Replacement (2-Way, 4-Way Hybrid) . When working with the passenger seat re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Control Module References
1	Wiring Harness Clips (Qty:5)
2	Front Seat Cushion Pad Wire

Callout

Component Name

WARNING:

To avoid personal injuries, re-zero the passenger presence system whenever you remove or replace the seat cushion or trim. Failure to do so may cause the system to malfunction.

Preliminary Procedures

Remove the front seat cushion pad. Refer to Driver or Passenger Seat Cushion Pad Replacement (2-Way, 4-Way Hybrid) .
When working with the passenger seat re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Control Module References

Wiring Harness Clips (Qty:5)

Front Seat Cushion Pad Wire
