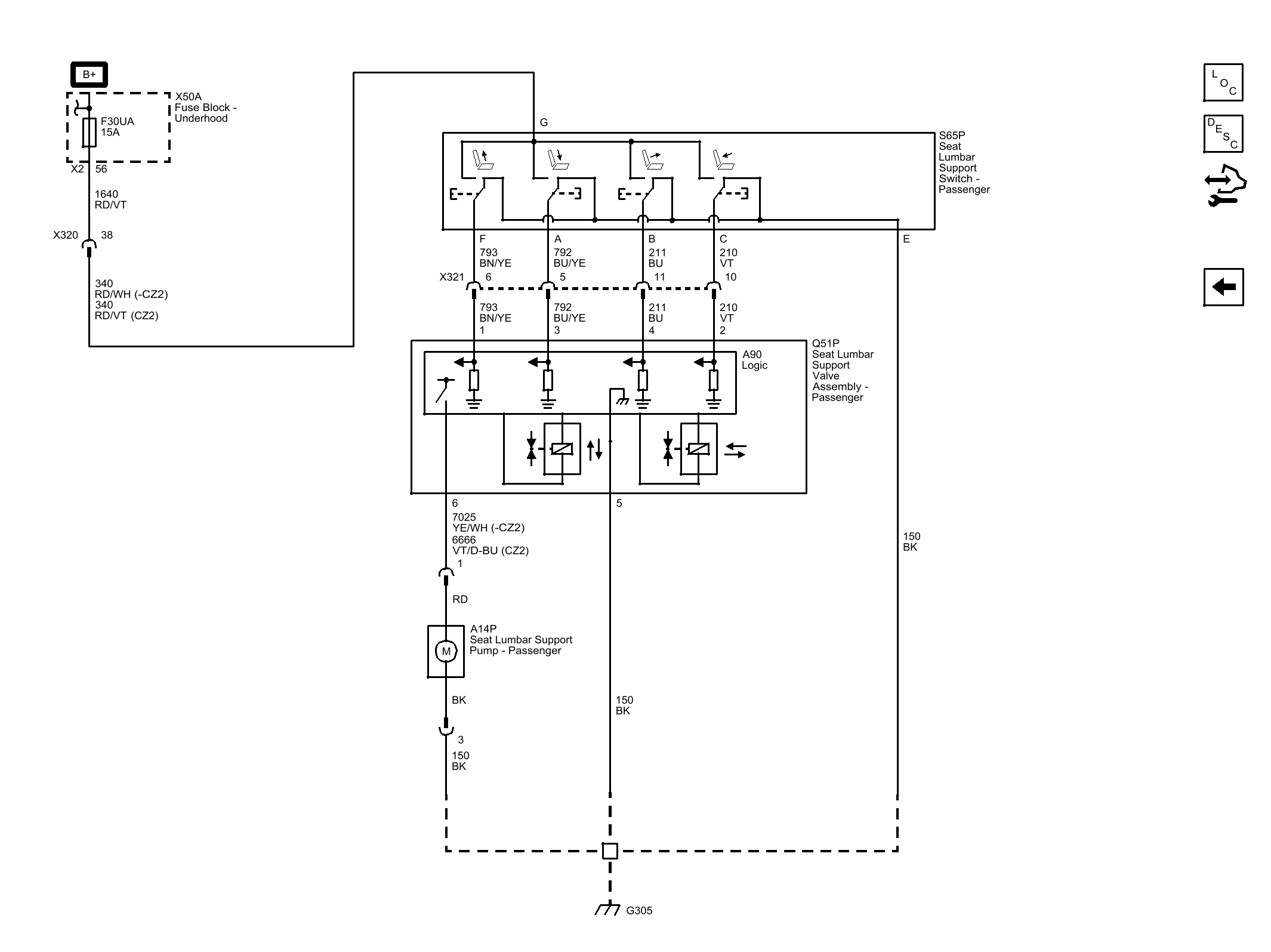

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Body & Frame >> Seats >> Power Seat System >> Schematic Wiring Diagrams >> Passenger Seat Wiring Schematics >> Lumbar Support System (APH)
