Seat Adjuster Switch and Position Motors (AG1 with A45)

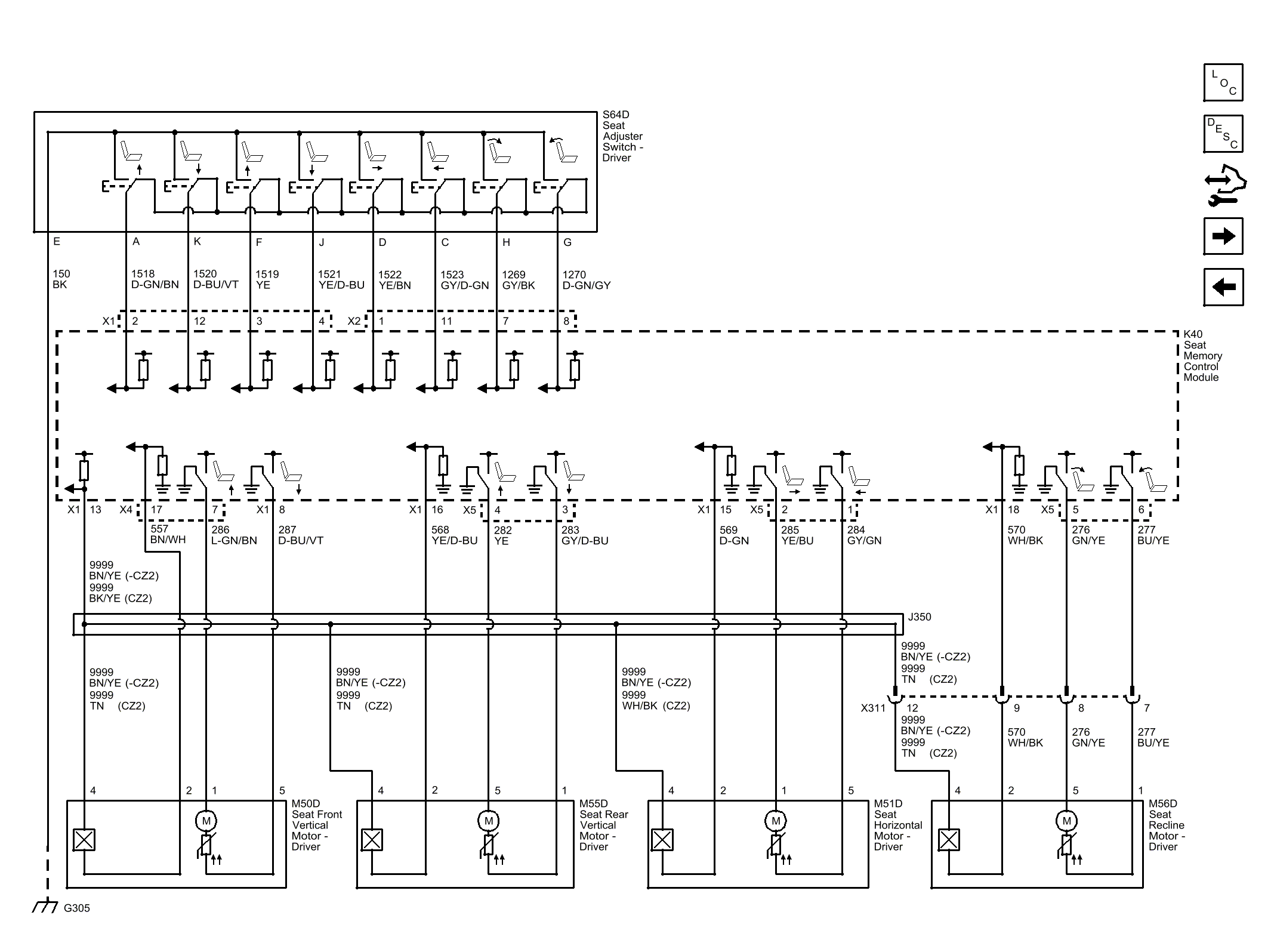

Fig 1: Seat Adjuster Switch and Position Motors (AG1 with A45)

GM3770234

Courtesy of GENERAL MOTORS COMPANY
