Seat Adjuster Switch and Position Motor (AG1 except A45)

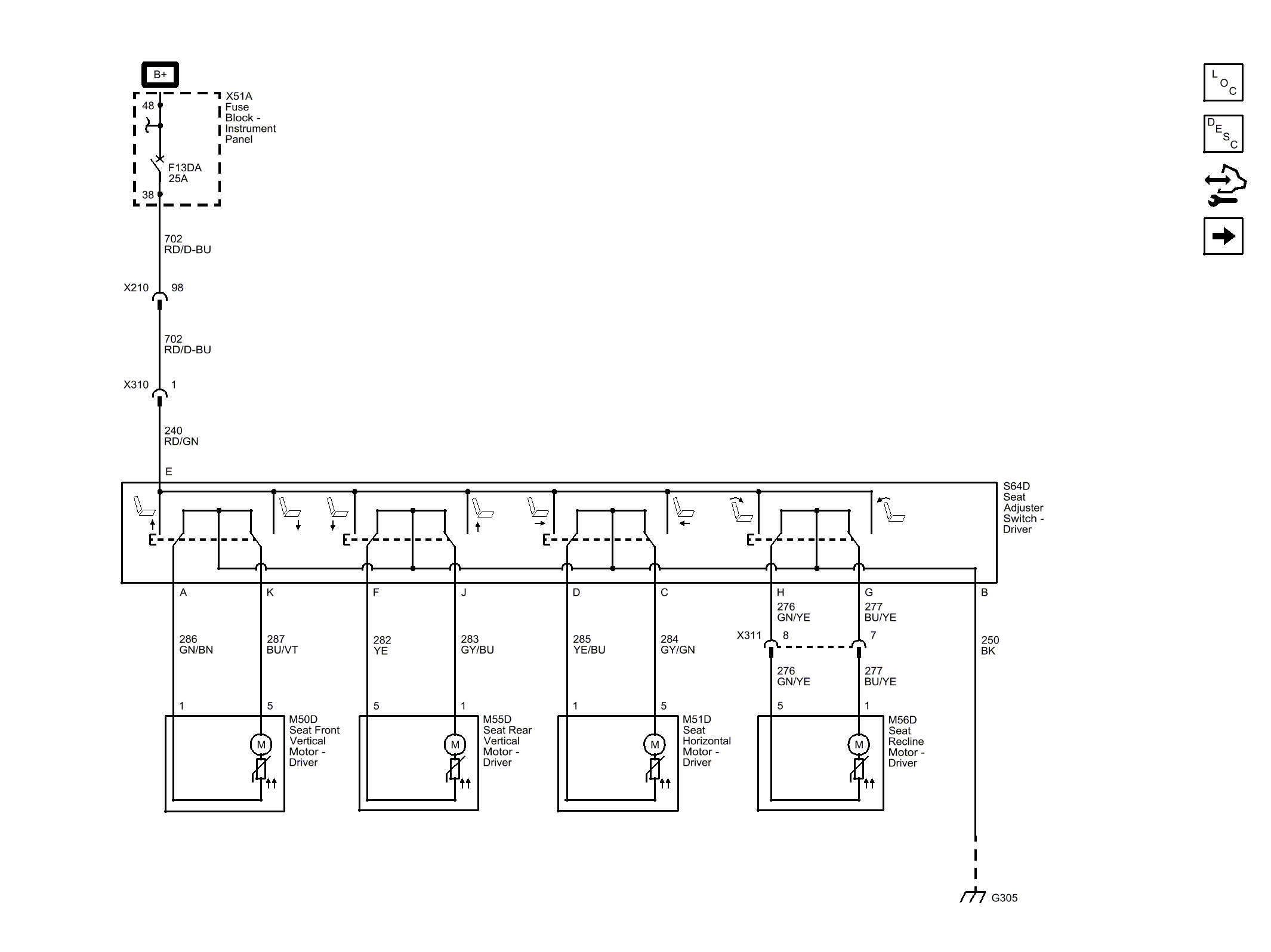

Fig 1: Seat Adjuster Switch and Position Motor (AG1 except A45)

GM3770228

Courtesy of GENERAL MOTORS COMPANY
