Module Power, Ground, Serial Data, and Memory Seat Switch (AG1 with A45)

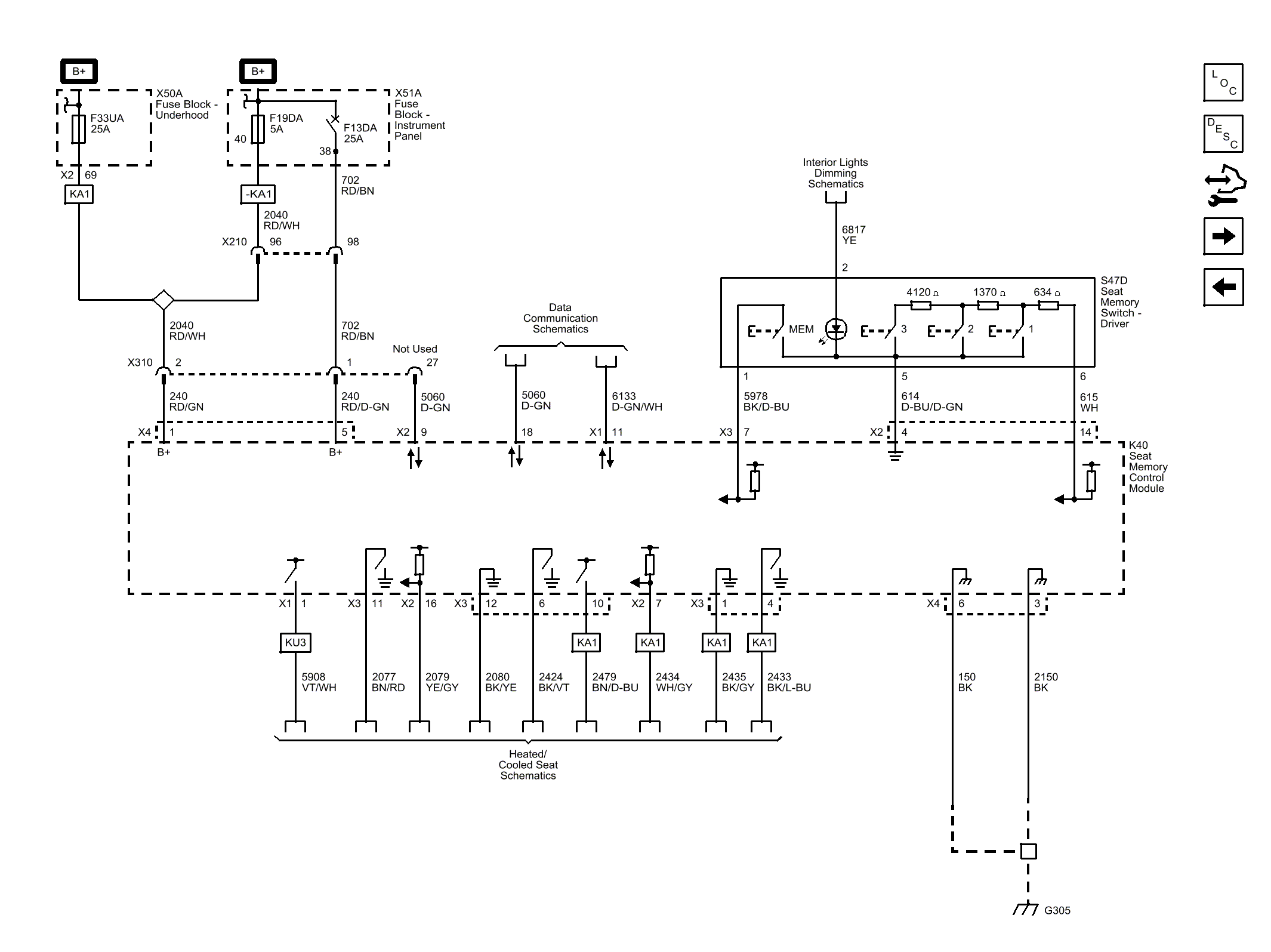

Fig 1: Module Power, Ground, Serial Data, and Memory Seat Switch (AG1 with A45)

GM3770231

Courtesy of GENERAL MOTORS COMPANY
