Front Seat Tilt Adjuster Actuator Replacement (Driver/Passenger Seat 8-Way Power)

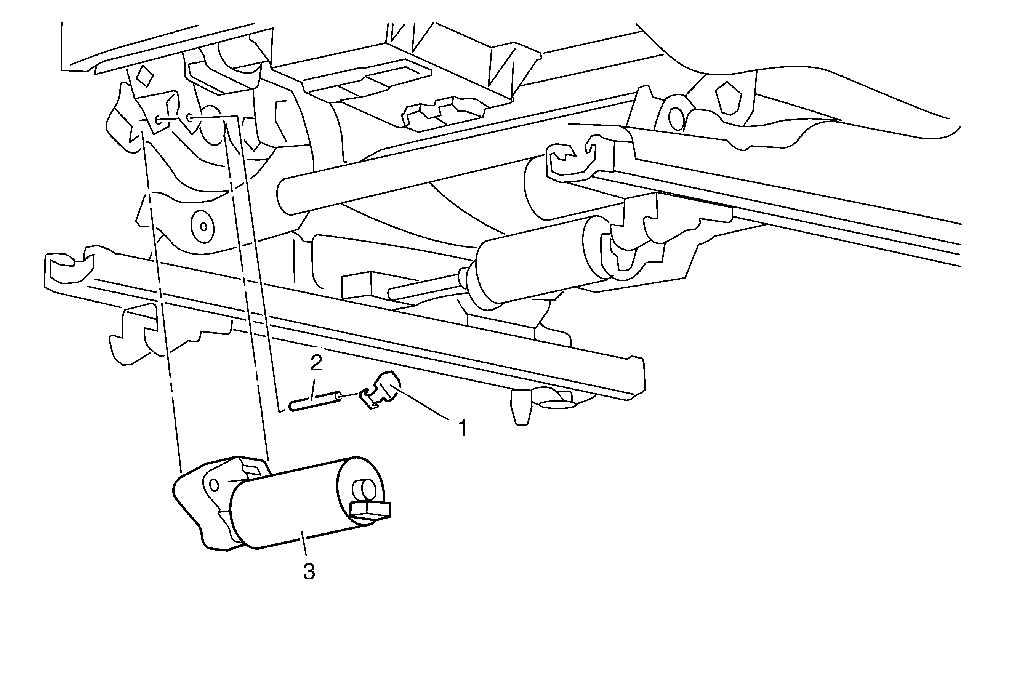

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation . |
|
| 1 | Securing Clip |
| 2 | Roll Pin TIP: Use a hammer and small round tool to tap the roll pin out. |
| 3 | Front Seat Tilt Adjuster Actuator Procedure Disconnect the electrical connector. |
