Front Seat Recliner Actuator Shaft Replacement (Lower - 8-Way-Power)

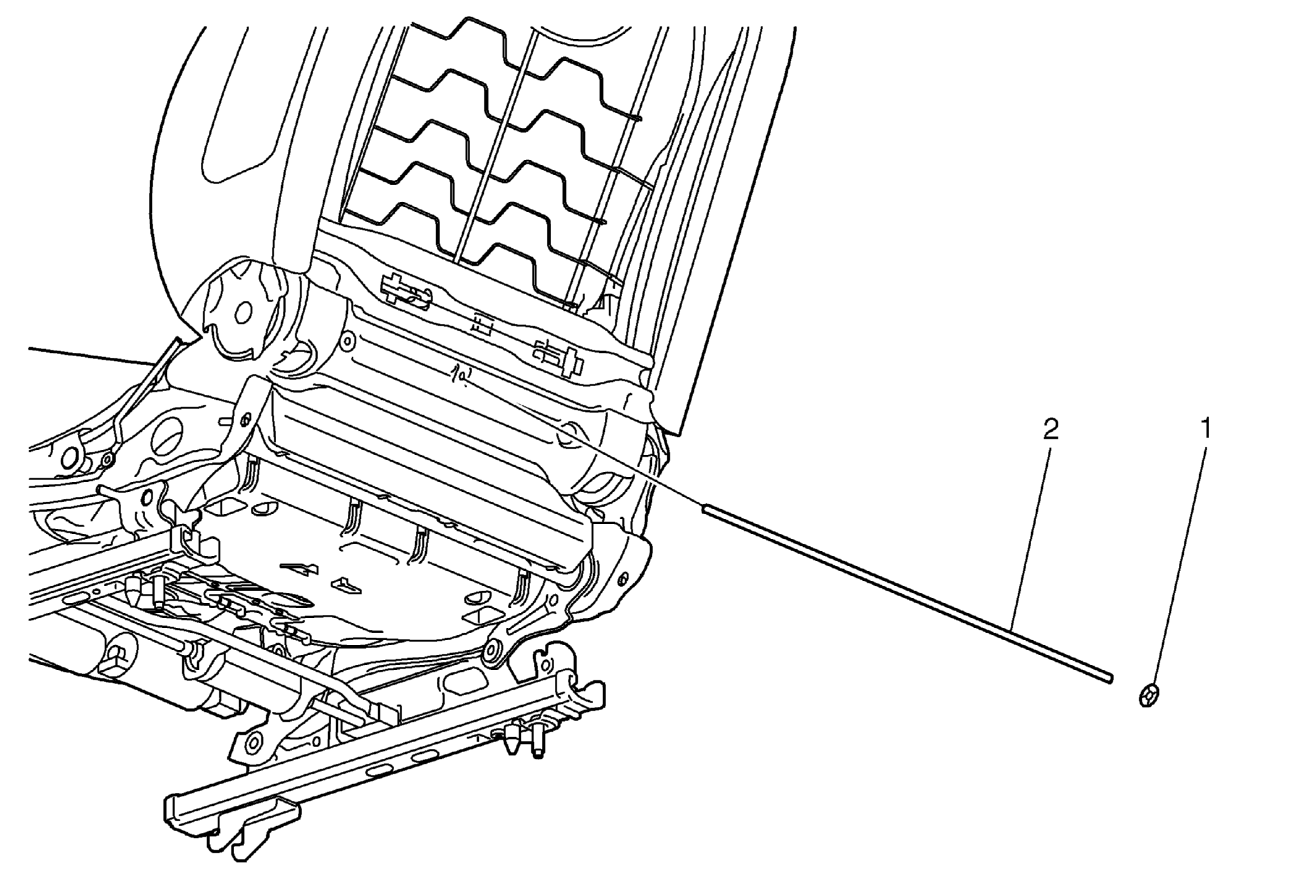

Fig 1: Front Seat Recliner Actuator Shaft (Lower - 8-Way-Power)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation . Release the front seat back cushion cover at backrest. Release the front seat recliner actuator.
1	Front Seat Recliner Actuator Shaft Jam Fastener TIP: Use a new jam fastener.
2	Front Seat Recliner Actuator Shaft

Callout

Component Name

Preliminary Procedure

Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
Release the front seat back cushion cover at backrest.
Release the front seat recliner actuator.

Front Seat Recliner Actuator Shaft Jam Fastener
TIP: Use a new jam fastener.

Front Seat Recliner Actuator Shaft
