Front Seat Cushion Wiring Harness Replacement

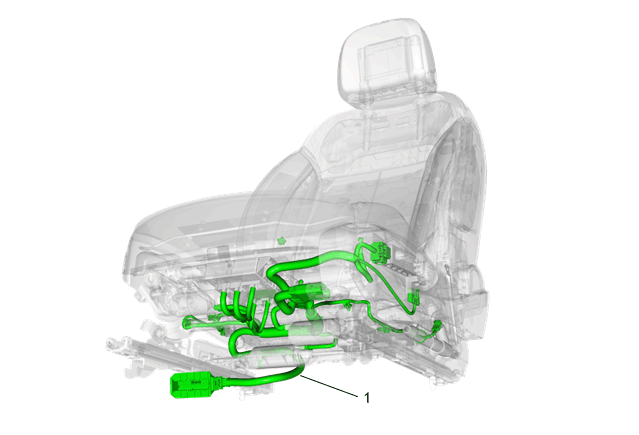

Fig 1: Front Seat Cushion Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures SIR Disabling and Enabling Front Seat Cushion Cover Replacement (Driver or Passenger Seat 6-Way Hybrid)
1	Front Seat Cushion Wiring Harness NOTE: Typical wiring harness shown, individual harness may be different due to option content. Procedure Control Module References for programming and setup information, if required.

Callout

Component Name

WARNING:

Preliminary Procedures

Front Seat Cushion Wiring Harness

NOTE:

Typical wiring harness shown, individual harness may be different due to option content.

Procedure
Control Module References for programming and setup information, if required.
