Front Seat Back Wiring Harness Replacement

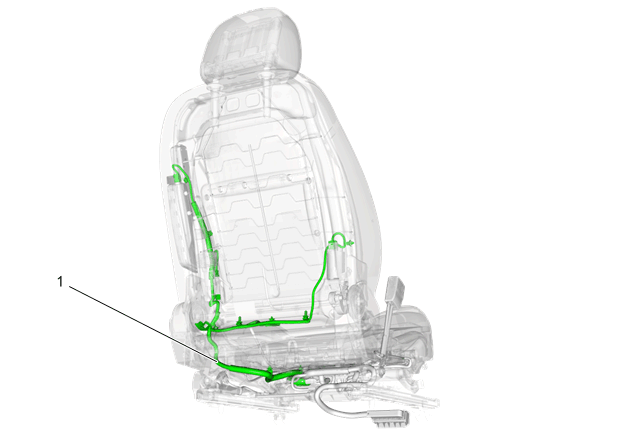

Fig 1: Front Seat Back Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures SIR Disabling and Enabling Front Seat Back Pad Replacement (2/4/6-Way Power)
1	Front Seat Back Wiring Harness NOTE: Typical wiring harness shown, individual harness may be different due to option content.

Callout

Component Name

WARNING:

Preliminary Procedures

Front Seat Back Wiring Harness

NOTE:

Typical wiring harness shown, individual harness may be different due to option content.
