Front Seat Adjuster Motor Replacement (Driver or Passenger Seat 8-Way Power)

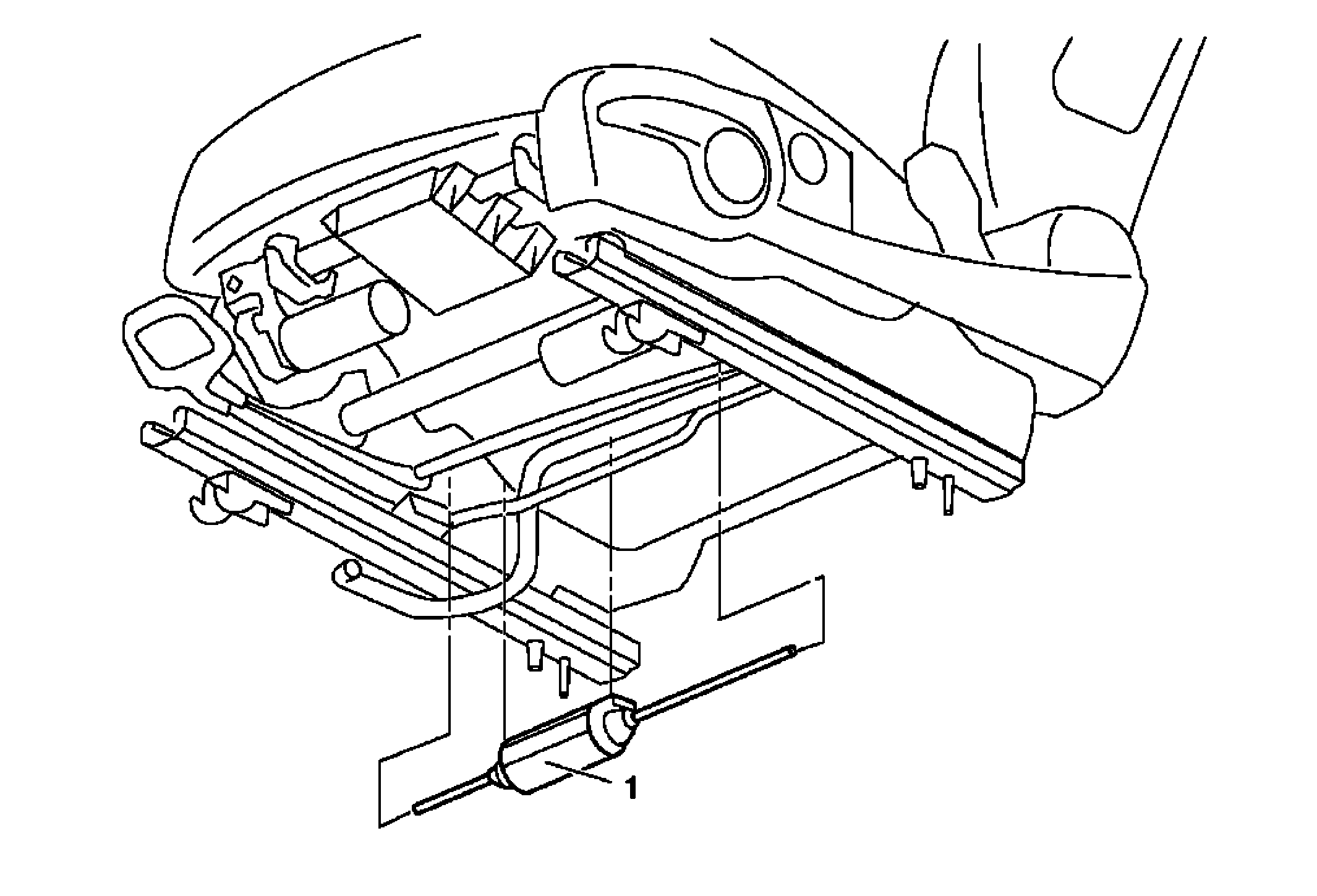

Fig 1: Front Seat Adjuster Motor (Driver or Passenger Seat 8-Way Power)
GM2019873Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure Remove the driver or passenger seat. Refer to DRIVER OR PASSENGER SEAT REMOVAL AND INSTALLATION .
1

Front Seat Adjuster Motor

Procedure

  1. Remove the seat adjuster motor out of the both brackets at seat frame.
  2. Remove the seat adjuster motor cables by pulling the cables out of adjuster.
  3. Disconnect the electric connector.
