Front Seat Adjuster Actuator Replacement (8-Way Power)

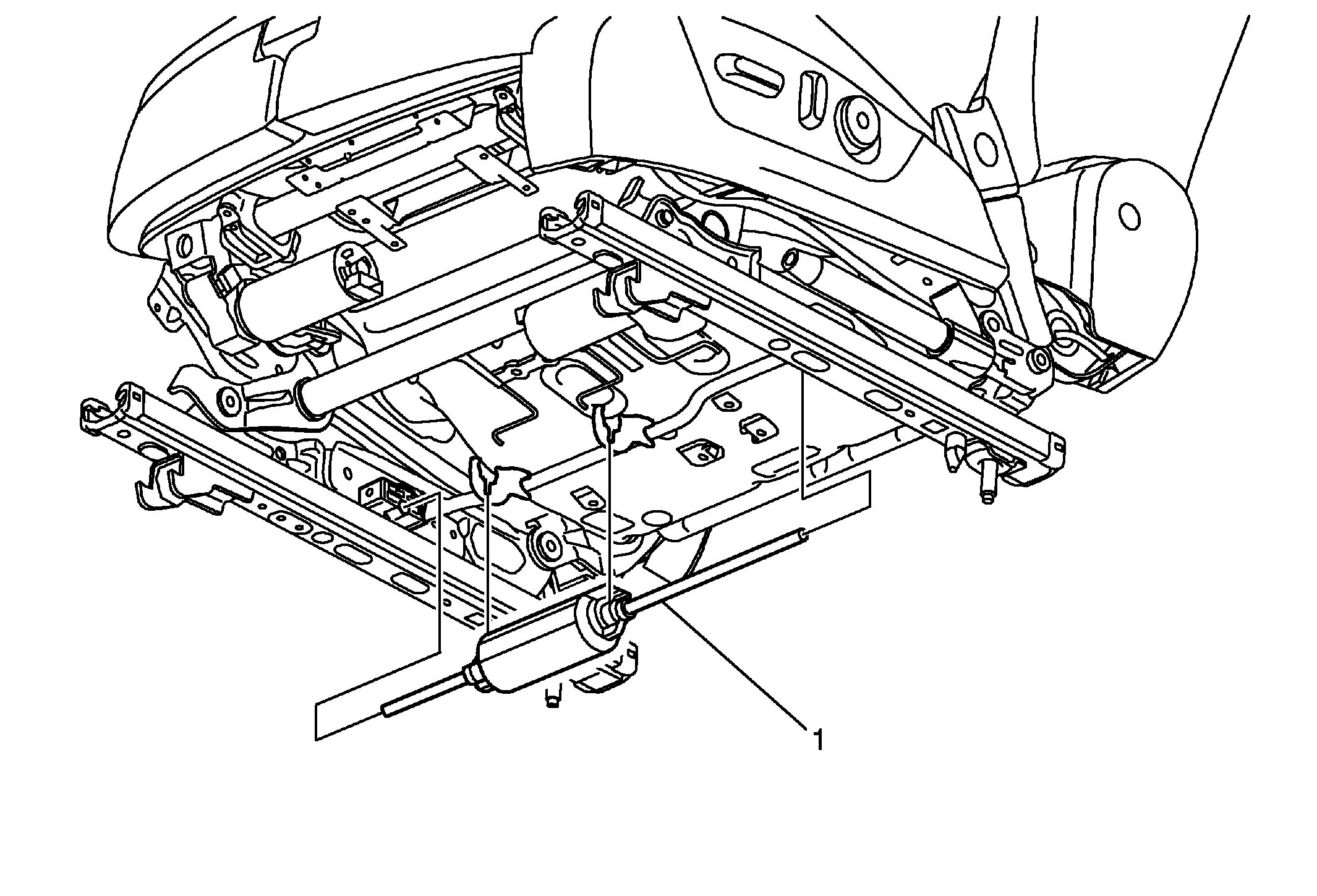

Fig 1: Front Seat Adjuster Actuator (8-Way Power)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
1	Front Seat Adjuster Actuator Procedure Remove the seat adjuster actuator out of both brackets at seat frame. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .

Front Seat Adjuster Actuator

Procedure
