Inside Rearview Mirror Wiring Schematics
>>
Inside Rearview Mirror - DD8
Inside Rearview Mirror - DD8

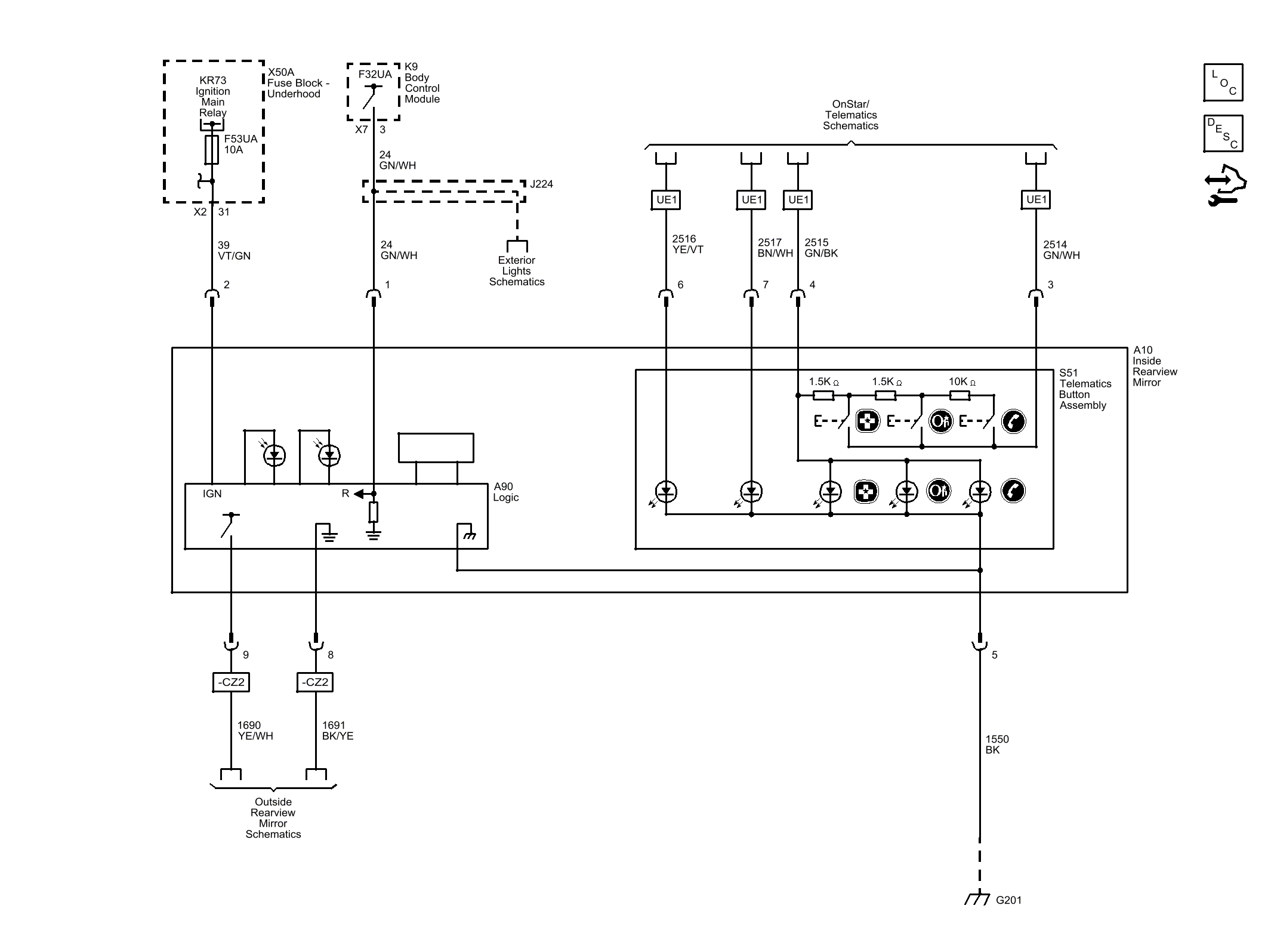

Fig 1: Inside Rearview Mirror - DD8
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
