Power Mirror System Block Diagram (With A45)

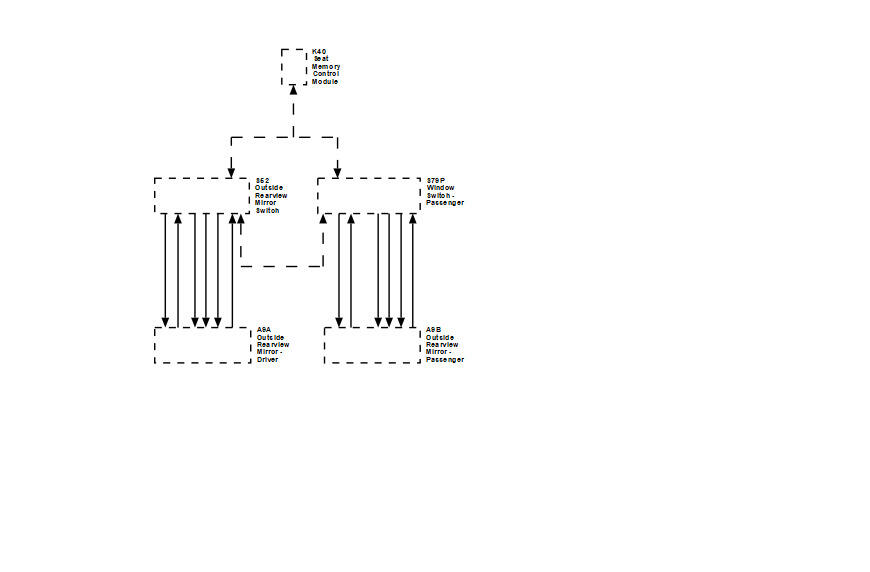

Fig 1: Power Mirror System Block Diagram (With A45)
GM3520568Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
K40 K40 Seat Memory Control Module
S52 S52 Outside Rearview Mirror Switch
S79P S79P Window Switch - Passenger
A9A A9A Outside Rearview Mirror - Driver
A9B A9B Outside Rearview Mirror - Passenger
