Immobilizer Wiring Schematics: Immobilizer

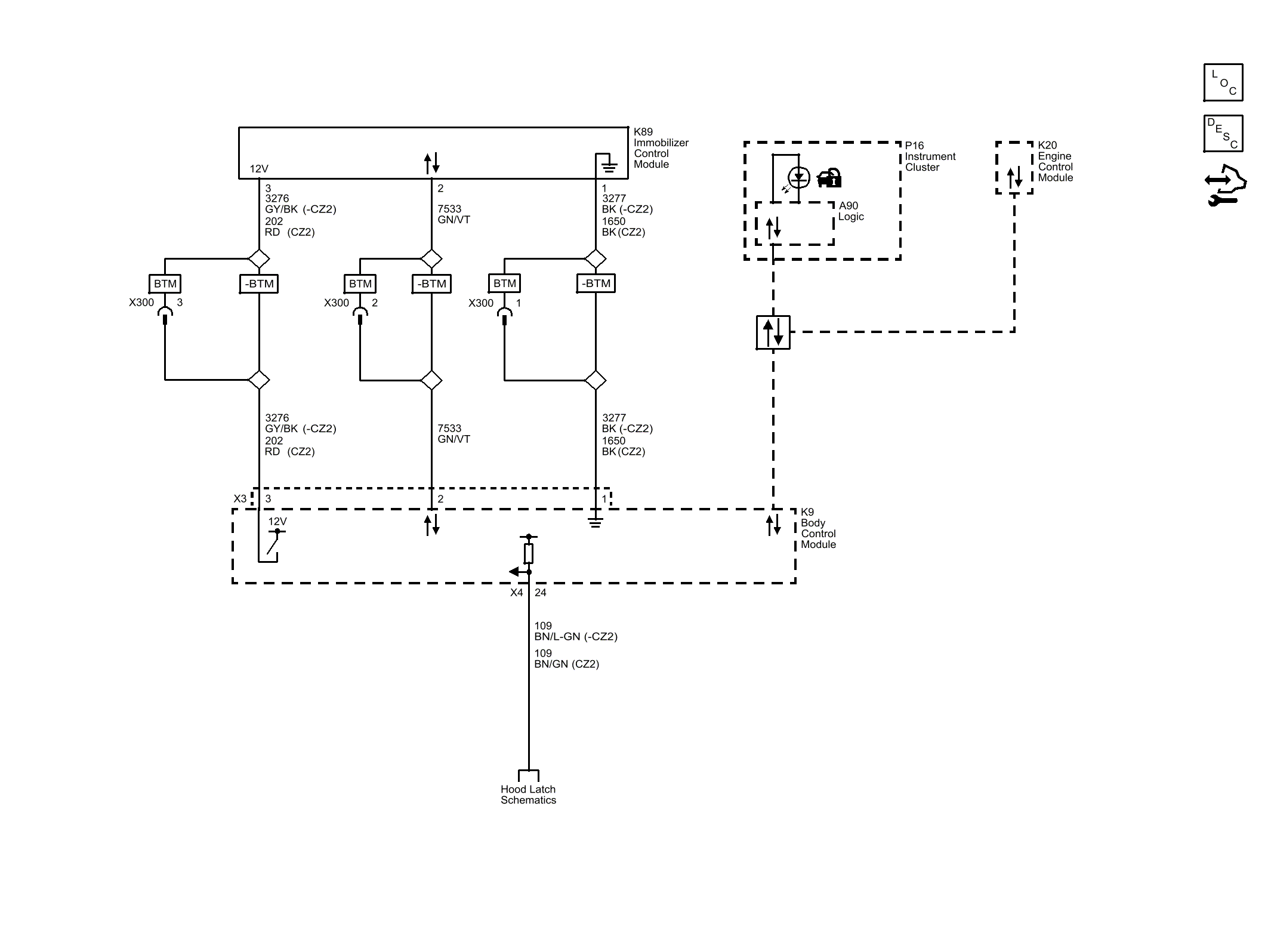

Fig 1: Immobilizer

GM3770174

Courtesy of GENERAL MOTORS COMPANY
