Underbody Front Air Deflector Replacement - Right Side

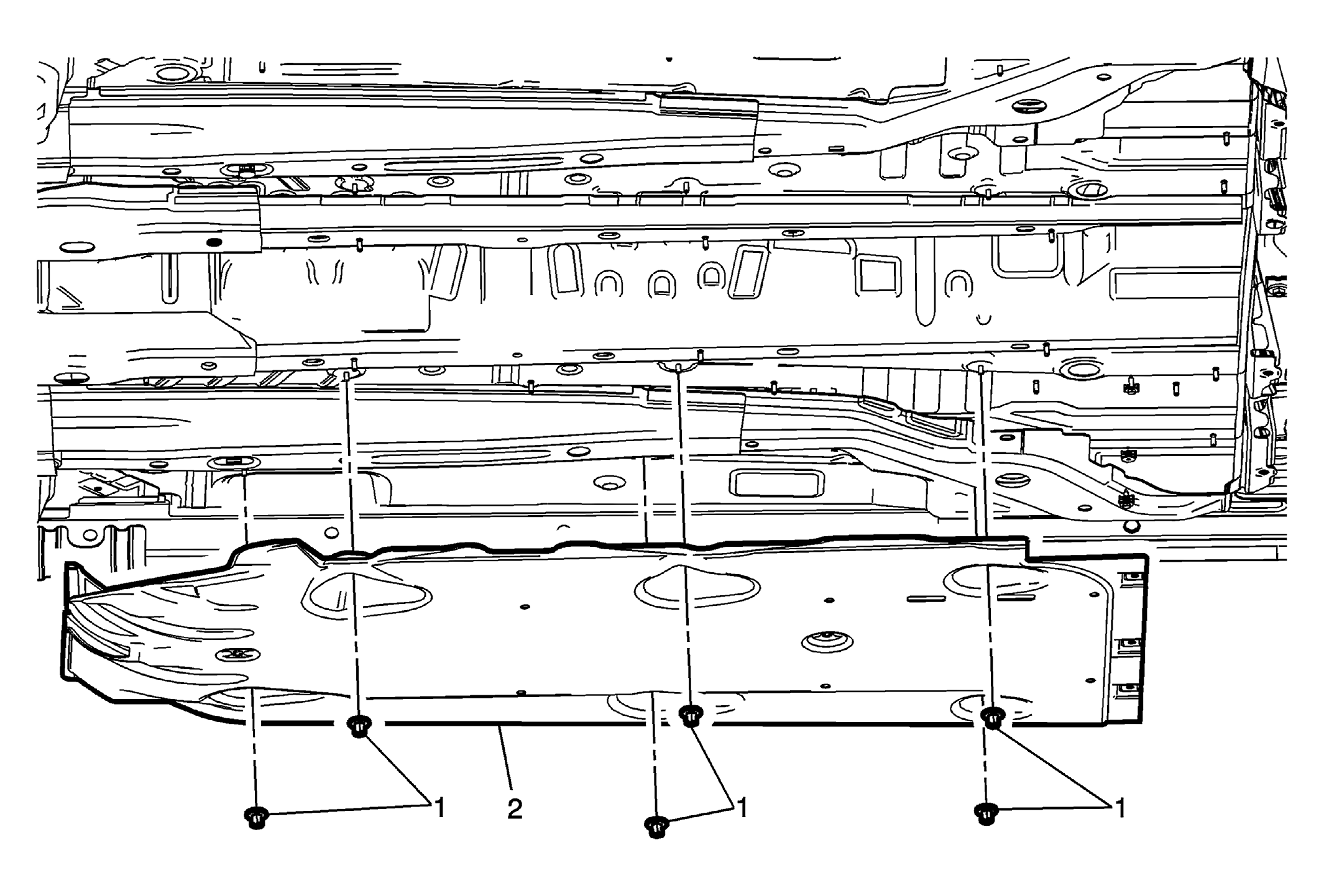

Fig 1: Underbody Front Air Deflector - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Do not use a service jack to lift this vehicle. Lifting the vehicle with a jack could cause the vehicle to slip off the jack and roll; this could cause injury or death. Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the underbody right rear air deflector. Refer to Underbody Rear Air Deflector Replacement - Right Side (HP6) .
1	Underbody Front Air Deflector Fastener (Qty:8) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Underbody Right Front Air Deflector

Callout

Component Name

WARNING:

Do not use a service jack to lift this vehicle. Lifting the vehicle with a jack could cause the vehicle to slip off the jack and roll; this could cause injury or death.

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the underbody right rear air deflector. Refer to Underbody Rear Air Deflector Replacement - Right Side (HP6) .

Underbody Front Air Deflector Fastener (Qty:8)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Underbody Right Front Air Deflector
