Underbody Front Air Deflector Replacement - Left Side

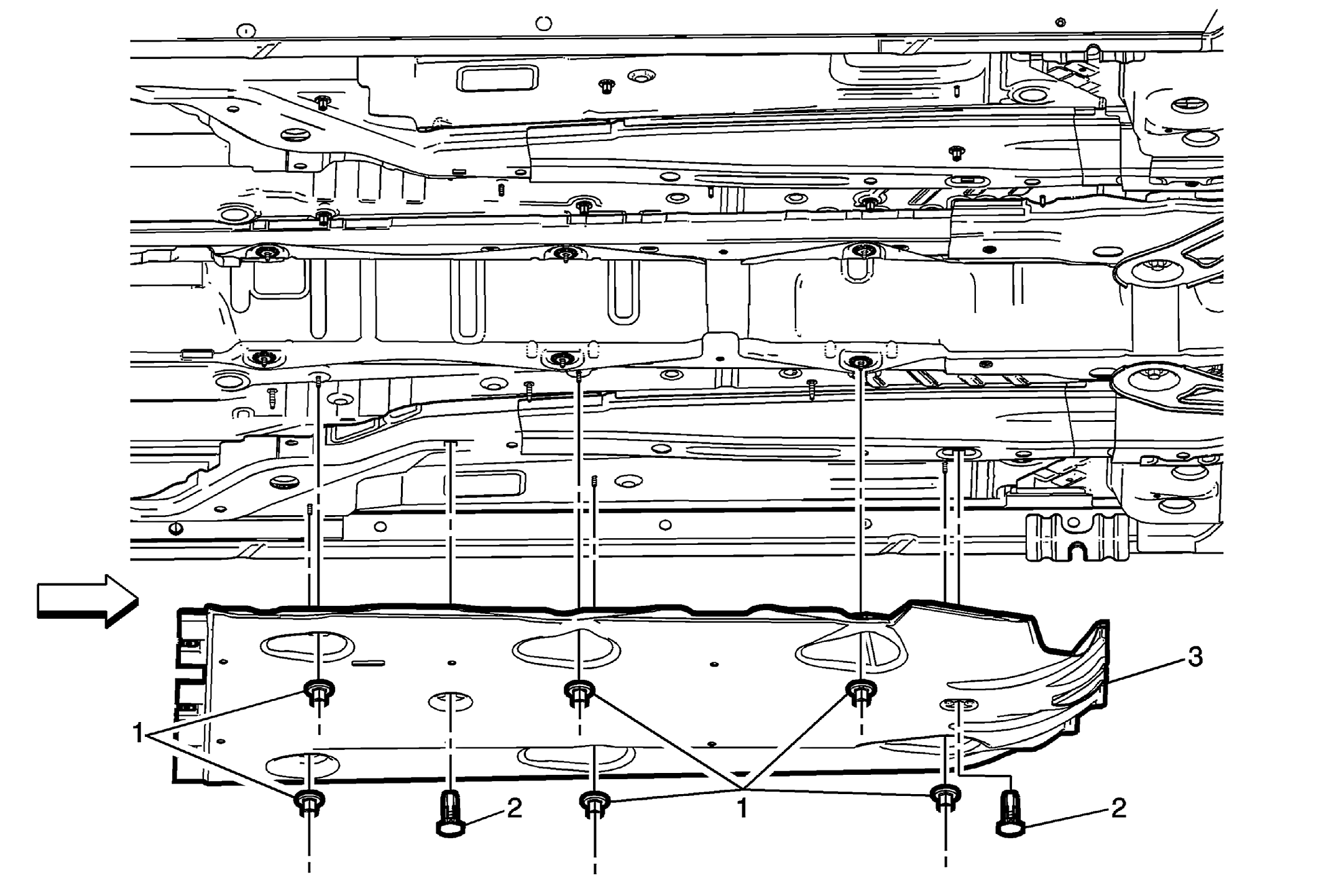

Fig 1: Underbody Front Air Deflector - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Do not use a service jack to lift this vehicle. Lifting the vehicle with a jack could cause the vehicle to slip off the jack and roll; this could cause injury or death. Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the underbody left rear air deflector. Refer to Underbody Rear Air Deflector Replacement - Left Side (HP6) .
1	Underbody Front Air Deflector Fastener (Qty:6) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Underbody Left Front Air Deflector Fastener (Qty:2)
3	Underbody Left Front Air Deflector
