Installation Procedure

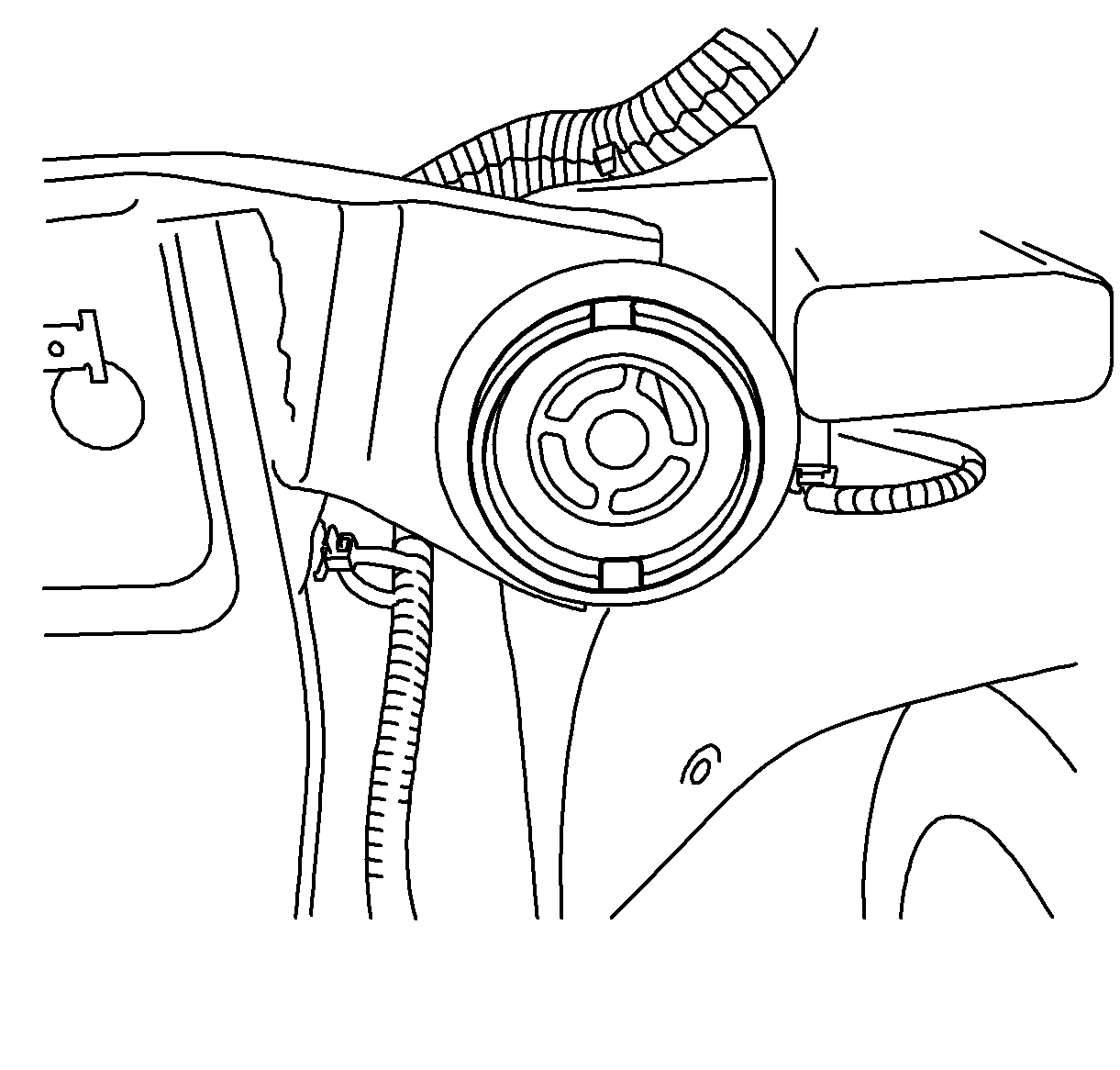

    Fig 1: Locating Front Bushing
    GM2019059Courtesy of GENERAL MOTORS COMPANY
  1. Locate the front bushings as shown.
    2. Fig 2: Bushing & Removal/Installation Tools
    GM2321609Courtesy of GENERAL MOTORS COMPANY
  2. Install the bushings using J-45296-1  remover and installer and J-45725-2  replacer (2).
  3. Install the frame to the body. Refer to Drivetrain and Front Suspension Frame Replacement .
