Rear Window Panel Trim Replacement (with HP6)

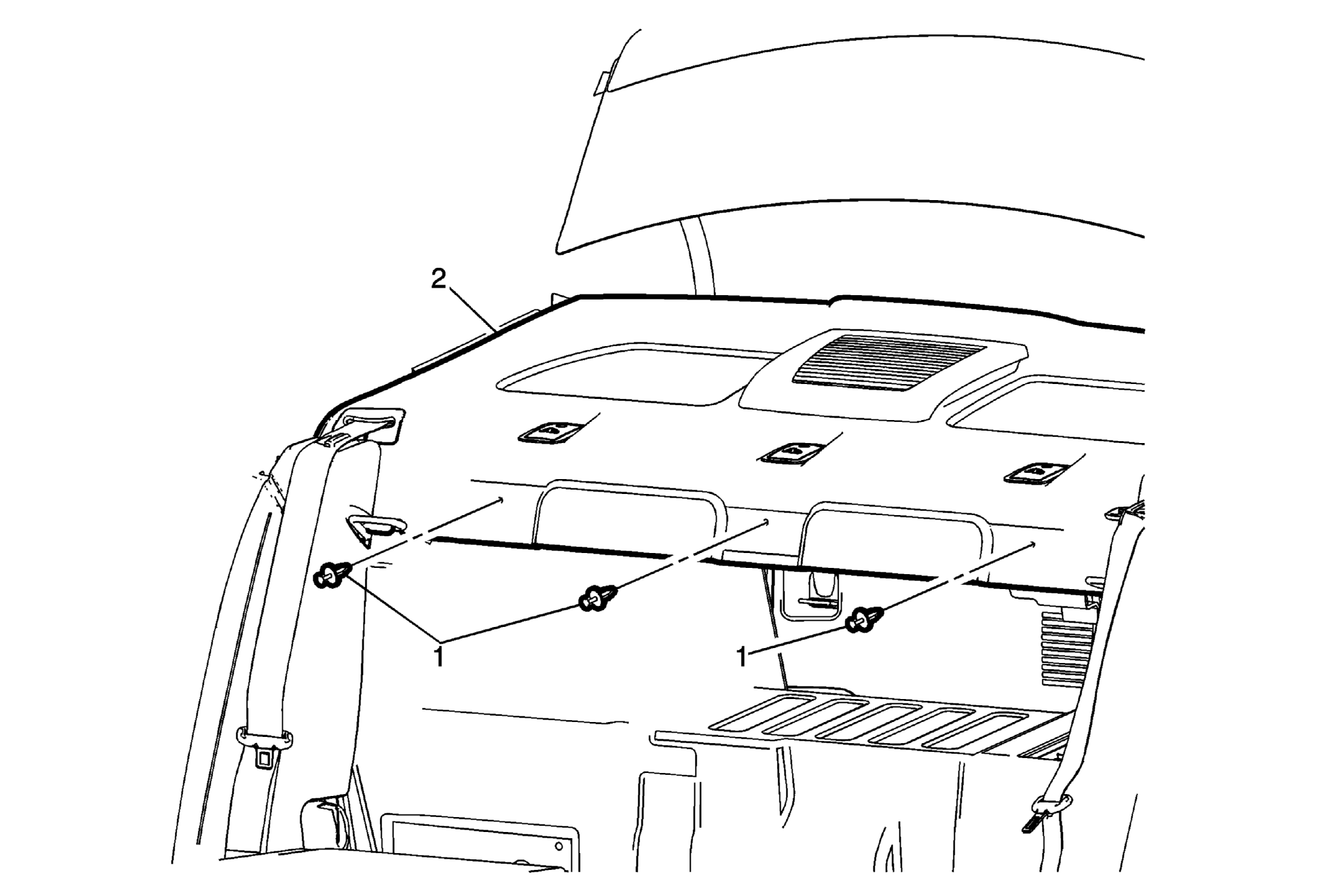

Fig 1: Rear Window Panel Trim (with HP6)
GM2592827Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Fold down the rear seat back cushions.
  2. Remove the rear seat back cushion bolsters. Refer to Rear Seat Back Bolster Replacement .
1 Rear Window Panel Trim Retainer (Qty:3)
2 Rear Window Panel Trim Assembly

Procedure

  1. Remove the seat belt guides and slide the belt through the slots in the panel.
  2. Disconnect the electrical connector.
  3. When replacing the rear window panel trim assembly, transfer all necessary components.
