Instrument Panel Upper Molding Replacement

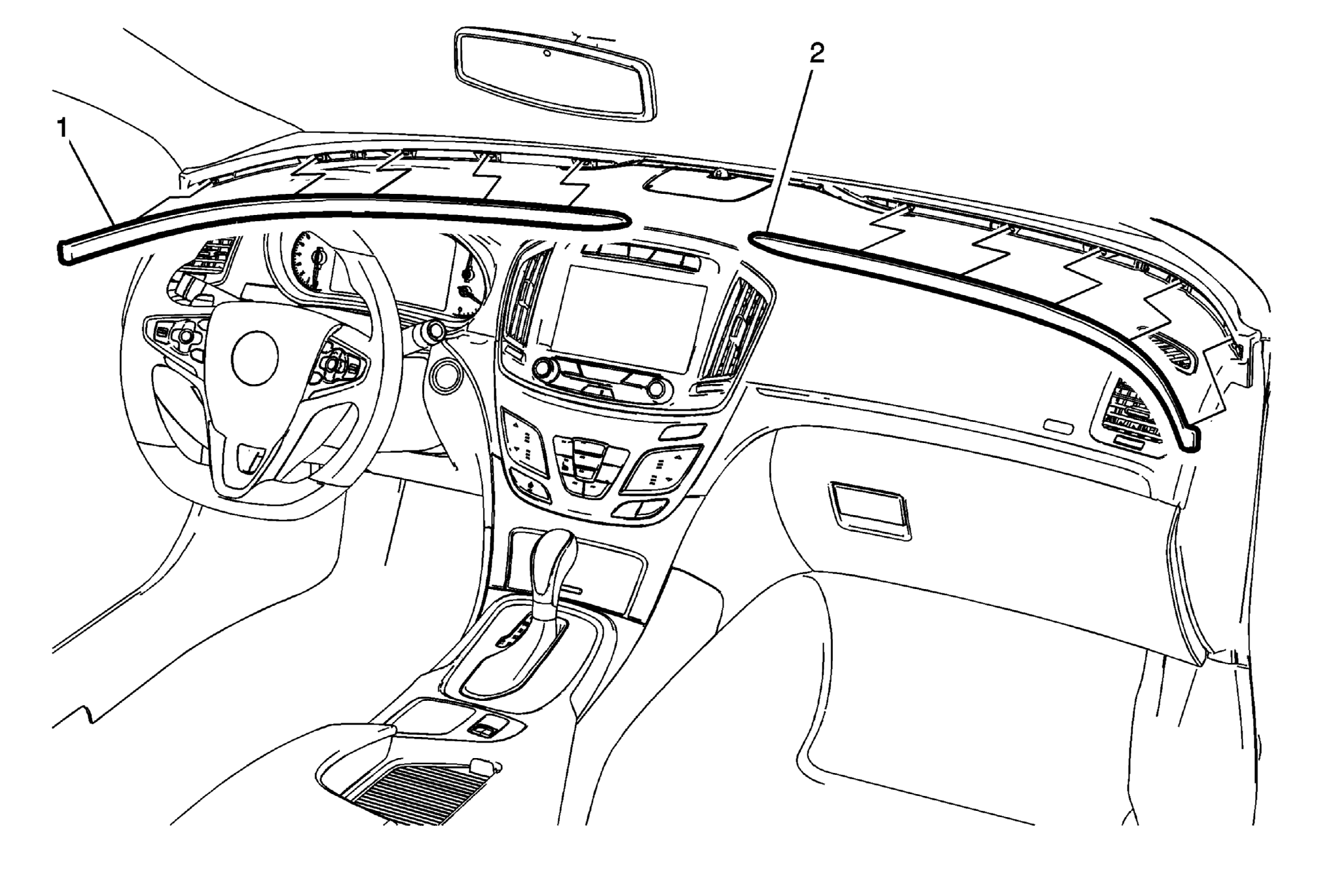

Fig 1: Instrument Panel Upper Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Upper Molding - Left Procedure  Use a flat-bladed plastic trim tool to release the instrument panel upper molding from the instrument panel.
2	Instrument Panel Upper Molding - Right Procedure  Use a flat-bladed plastic trim tool to release the instrument panel upper molding from the instrument panel.
