Removal Procedure

  1. Remove the instrument cluster. Refer to Instrument Cluster Replacement .

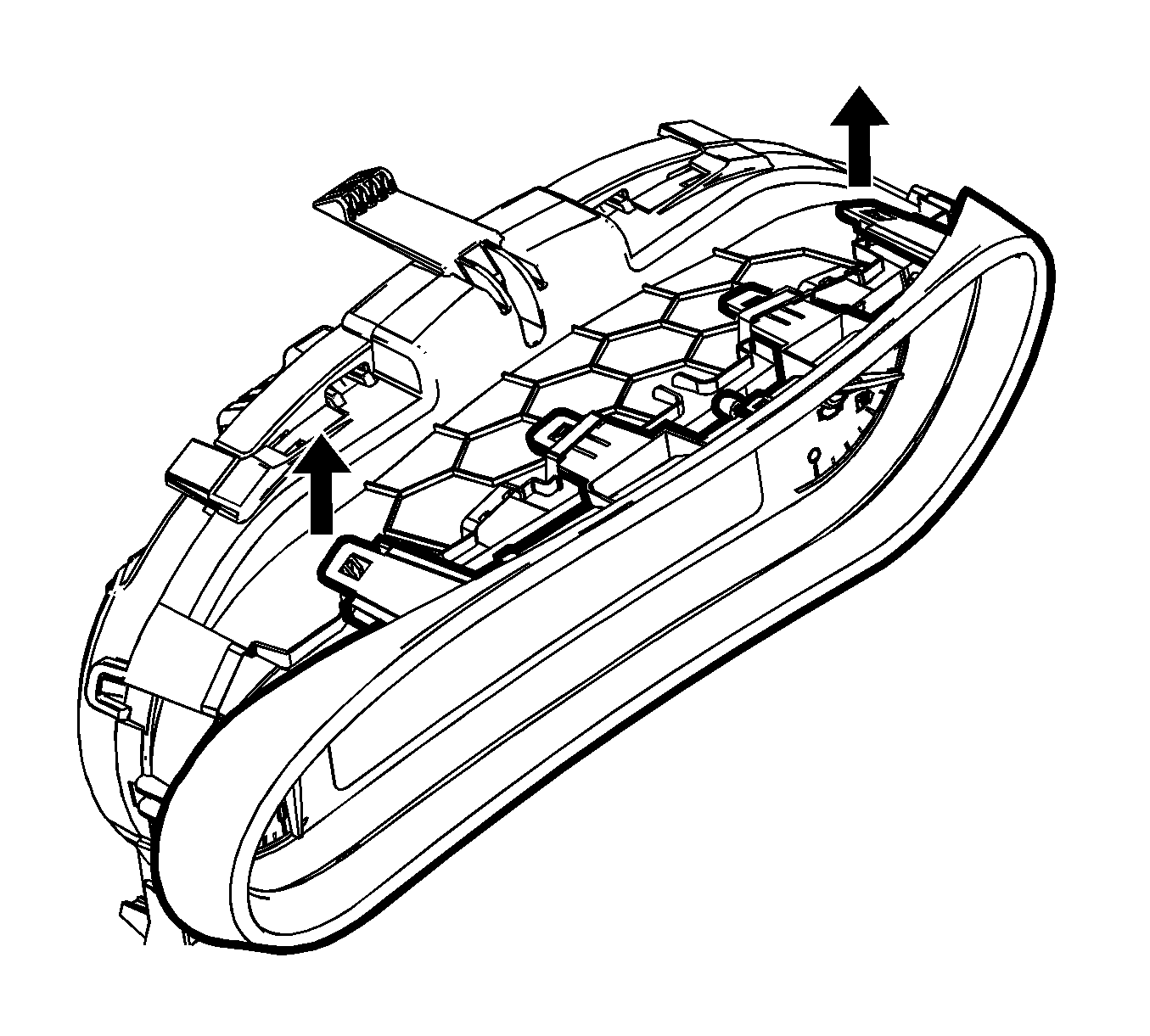

    2. Fig 1: Instrument Cluster Locking Tab
    GM3417934Courtesy of GENERAL MOTORS COMPANY
  2. Release the locking tab from the instrument cluster.

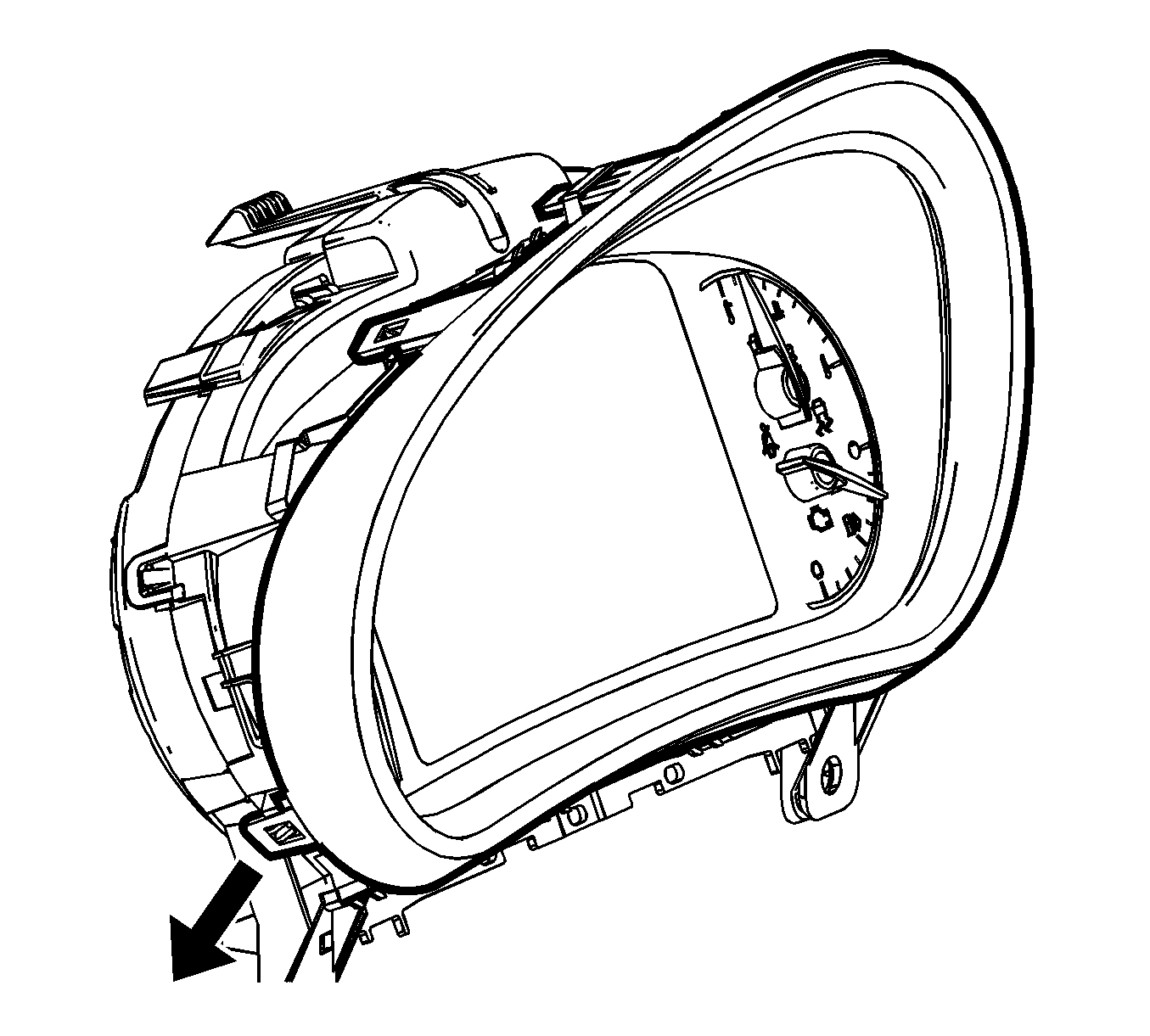

    3. Fig 2: Instrument Cluster Side Locking Tab
    GM3417935Courtesy of GENERAL MOTORS COMPANY
  3. Release the locking tab from both sides of the instrument cluster.

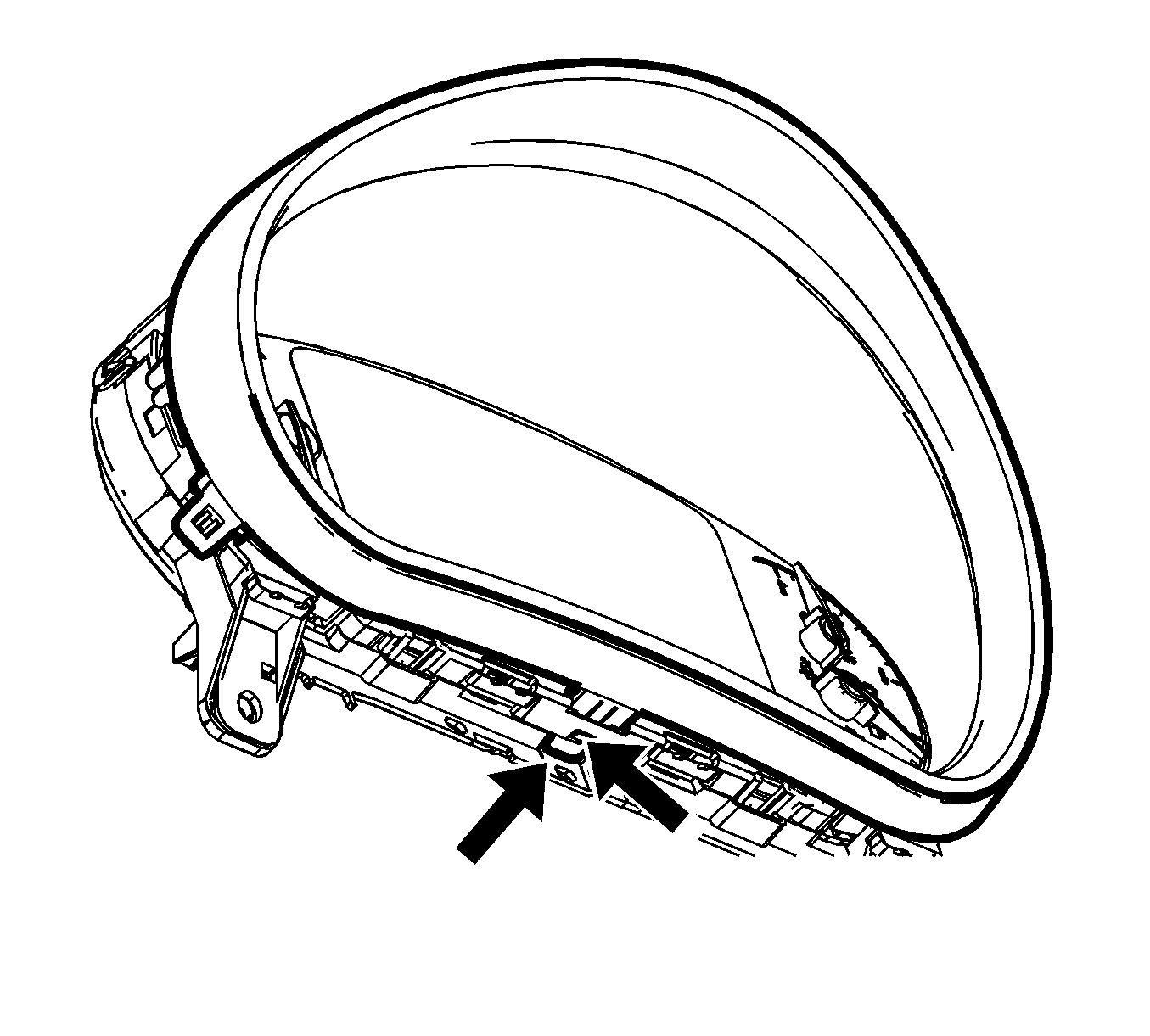

    4. Fig 3: Instrument Cluster Bottom Tab
    GM3417937Courtesy of GENERAL MOTORS COMPANY
  4. Release the tab from the bottom of the instrument cluster.

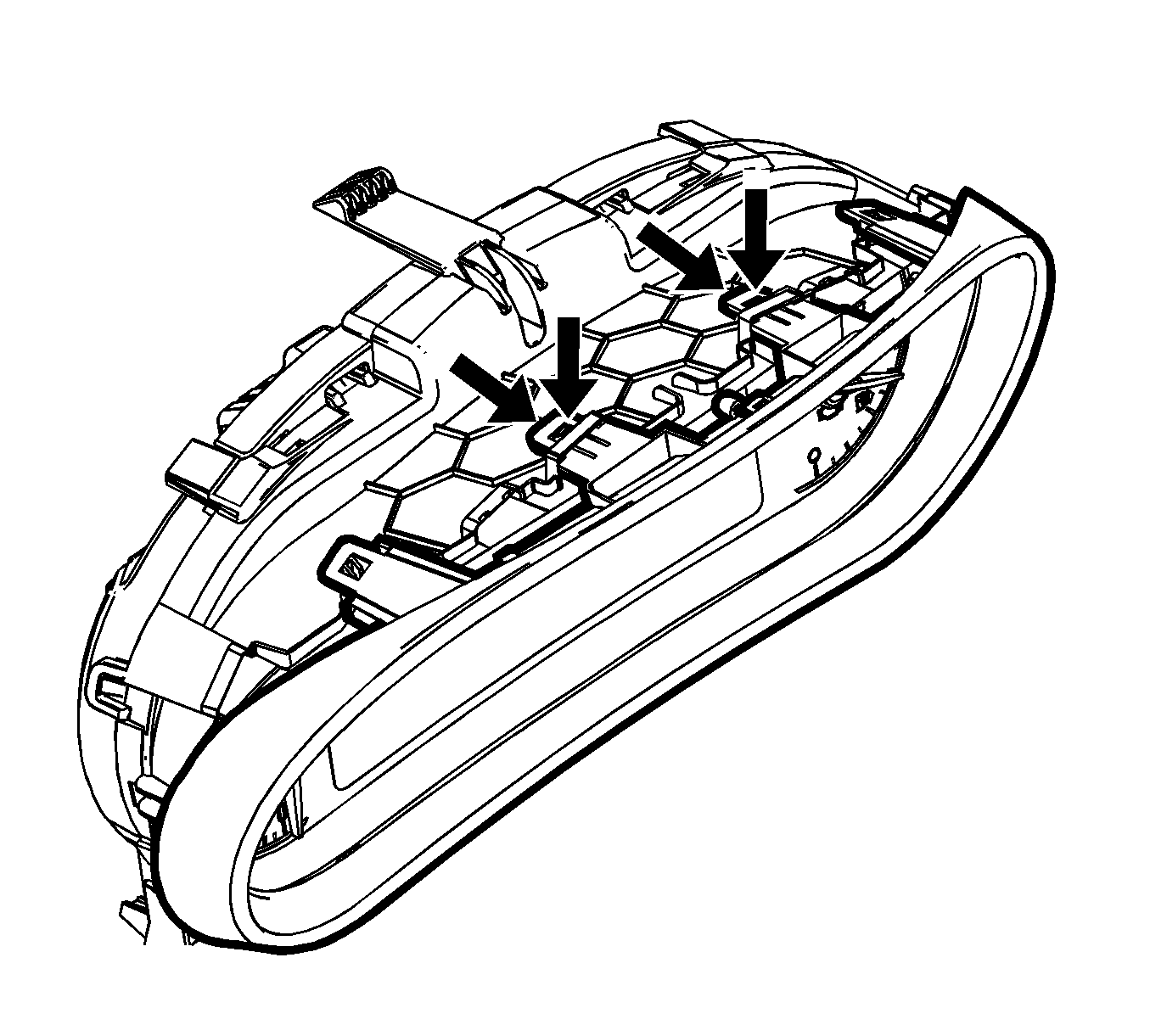

    5. Fig 4: Instrument Cluster Top Tabs
    GM3417984Courtesy of GENERAL MOTORS COMPANY
  5. Release the tabs from the top of the instrument cluster.
    6. Fig 5: Instrument Panel Cluster Trim Plate
    GM3417985Courtesy of GENERAL MOTORS COMPANY
  6. Remove the instrument panel cluster trim plate (1) from the instrument cluster.
