Installation Procedure

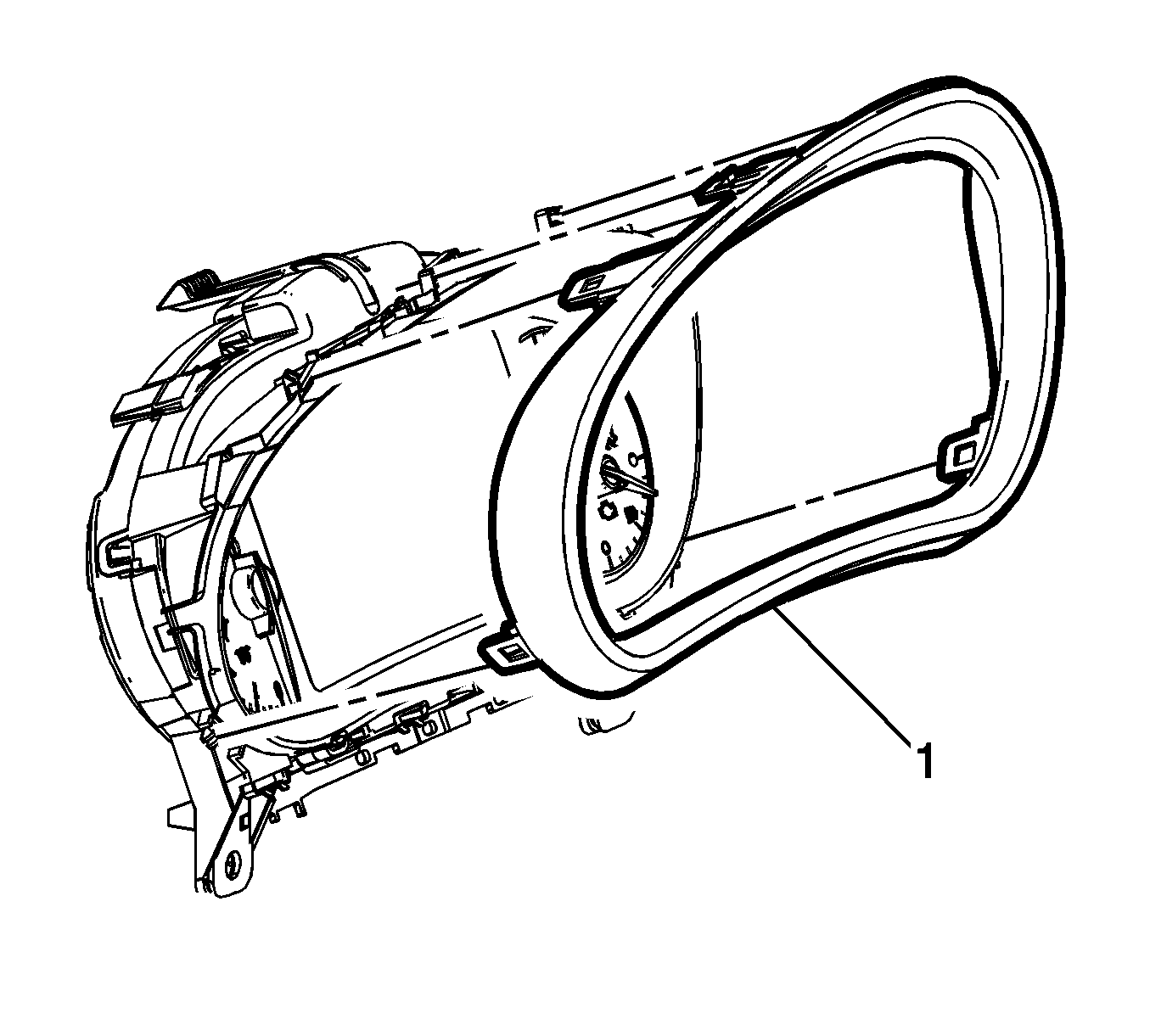

    Fig 1: Instrument Panel Cluster Trim Plate
    GM3417985Courtesy of GENERAL MOTORS COMPANY
  1. Install the instrument panel cluster trim plate (1) to the instrument cluster.
  2. Install the instrument cluster. Refer to Instrument Cluster Replacement .
