Front Floor Console Transmission Shift Opening Bezel Replacement

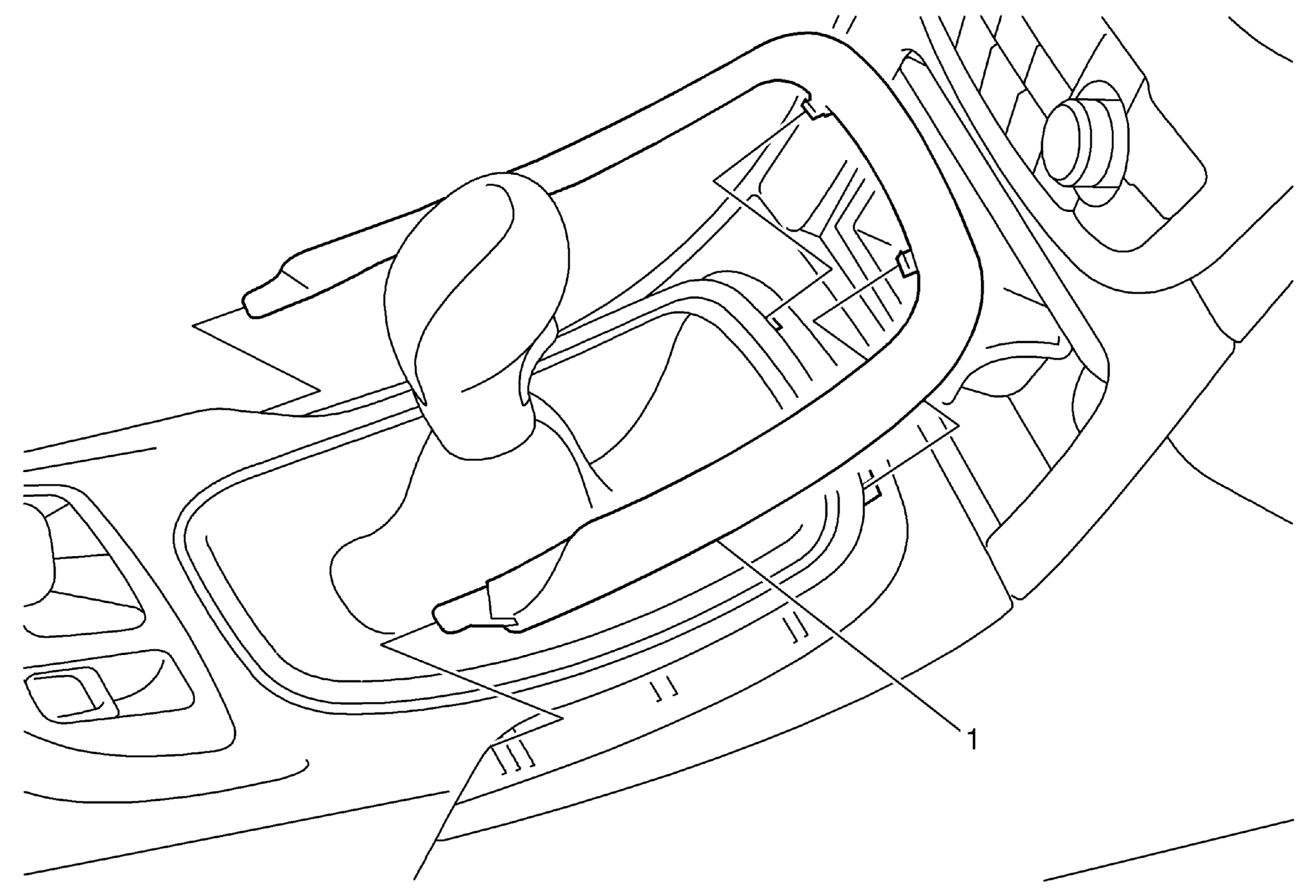

Fig 1: Front Floor Console Transmission Shift Opening Bezel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Floor Console Transmission Shift Opening Bezel Procedure  Open the ashtray housing and pull off the shift opening bezel from the upper console trim plate. TIP:  Use a flat-bladed plastic trim tool in order to release the front floor console transmission shift opening bezel from the front floor upper console trim plate.
