Rocker Panel Molding Replacement

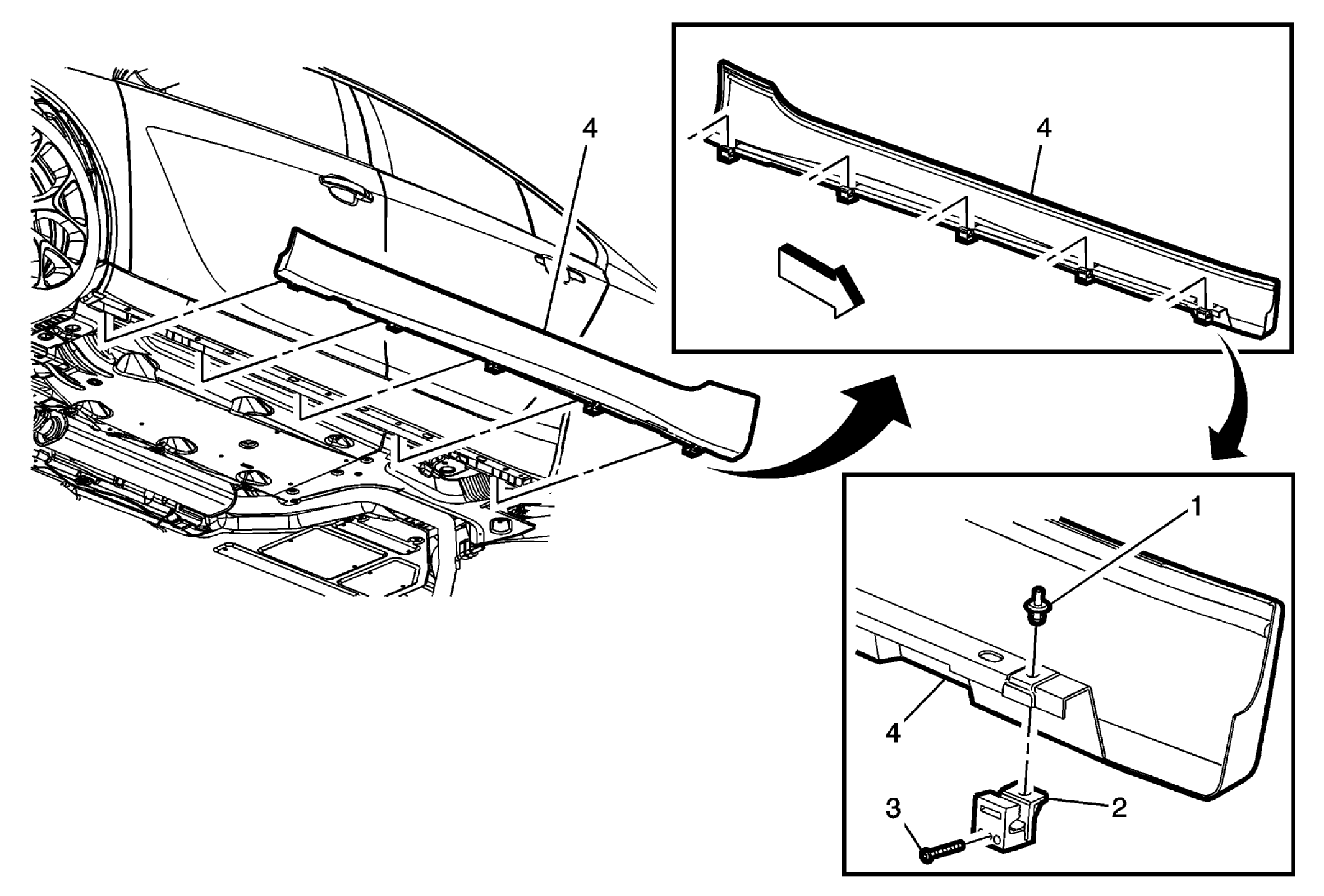

Fig 1: Rocker Panel Molding & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rocker Panel Finish Panel Rivet (Qty:5) WARNING: Refer to Eye Protection Warning . CAUTION: Refer to Fastener Caution .
2	Rocker Panel Molding Bracket (Qty:5)
3	Rocker Panel Molding Bolt (Qty:5) CAUTION: Refer to Fastener Caution .
4	Rocker Panel Molding Procedure The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for onehour after assembly to allow adhesive to develop sufficient bond strength. Using a heat gun in a circular motion, warm the rocker panel molding in order to help remove the adhesive. From the bottom edge firmly pull out and up to remove the rocker panel molding from the rocker panel. Use a flat bladed plastic tool to assist in removal. Clean and prime the rocker panel and the new rocker panel molding with a suitable cleaner and primer before installing. Refer to Adhesives, Fluids, Lubricants, and Sealers . Apply new adhesive, refer to Adhesives, Fluids, Lubricants, and Sealers in the same locations as the rocker panel had before removal. Use an appropriate tape to hold rocker panel molding in position while adhesive cures.
