Rear Side Door Window Frame Front Cover Replacement

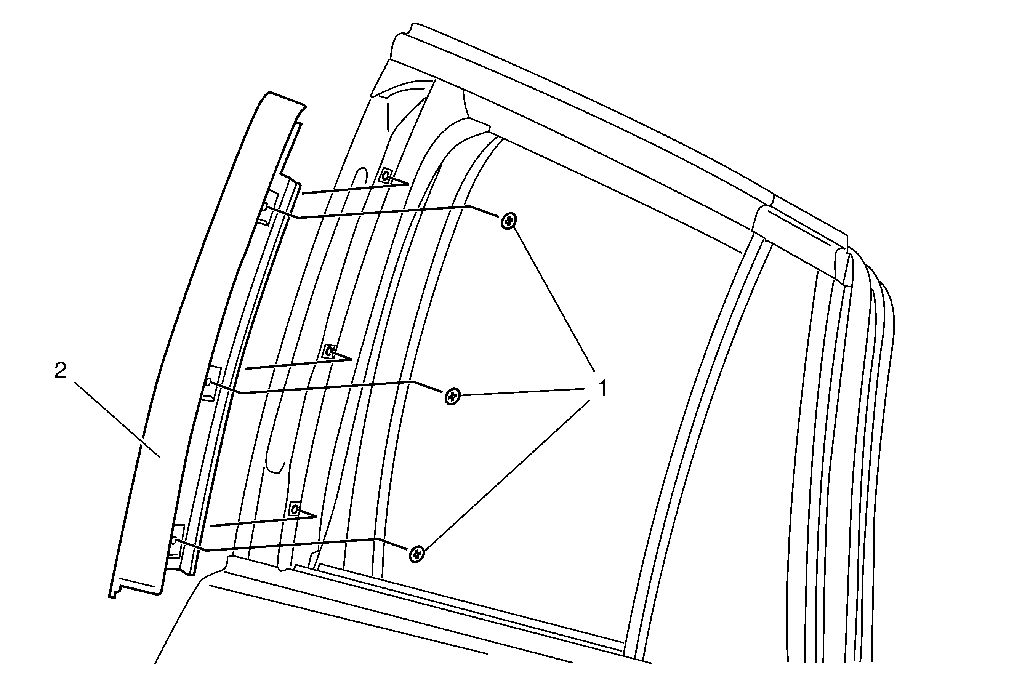

Fig 1: Rear Side Door Window Frame Front Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place the rear door window in the full down position. Remove the rear side door window outer sealing strip. Refer to Rear Side Door Window Outer Sealing Strip Replacement .
1	Rear Side Door Window Frame Front Cover Fastener (Qty:3) CAUTION: Refer to Fastener Caution . Procedure Pull the rear side door window weatherstrip from the applique to expose the fasteners. Tighten 2 N.m (18 lb in)
2	Rear Side Door Window Frame Front Cover

Callout

Component Name

Preliminary Procedures

Place the rear door window in the full down position.
Remove the rear side door window outer sealing strip. Refer to Rear Side Door Window Outer Sealing Strip Replacement .

Rear Side Door Window Frame Front Cover Fastener (Qty:3)

CAUTION:

Procedure
Pull the rear side door window weatherstrip from the applique to expose the fasteners.
Tighten
2 N.m (18 lb in)

Rear Side Door Window Frame Front Cover
