Rear Closure Center Applique Replacement

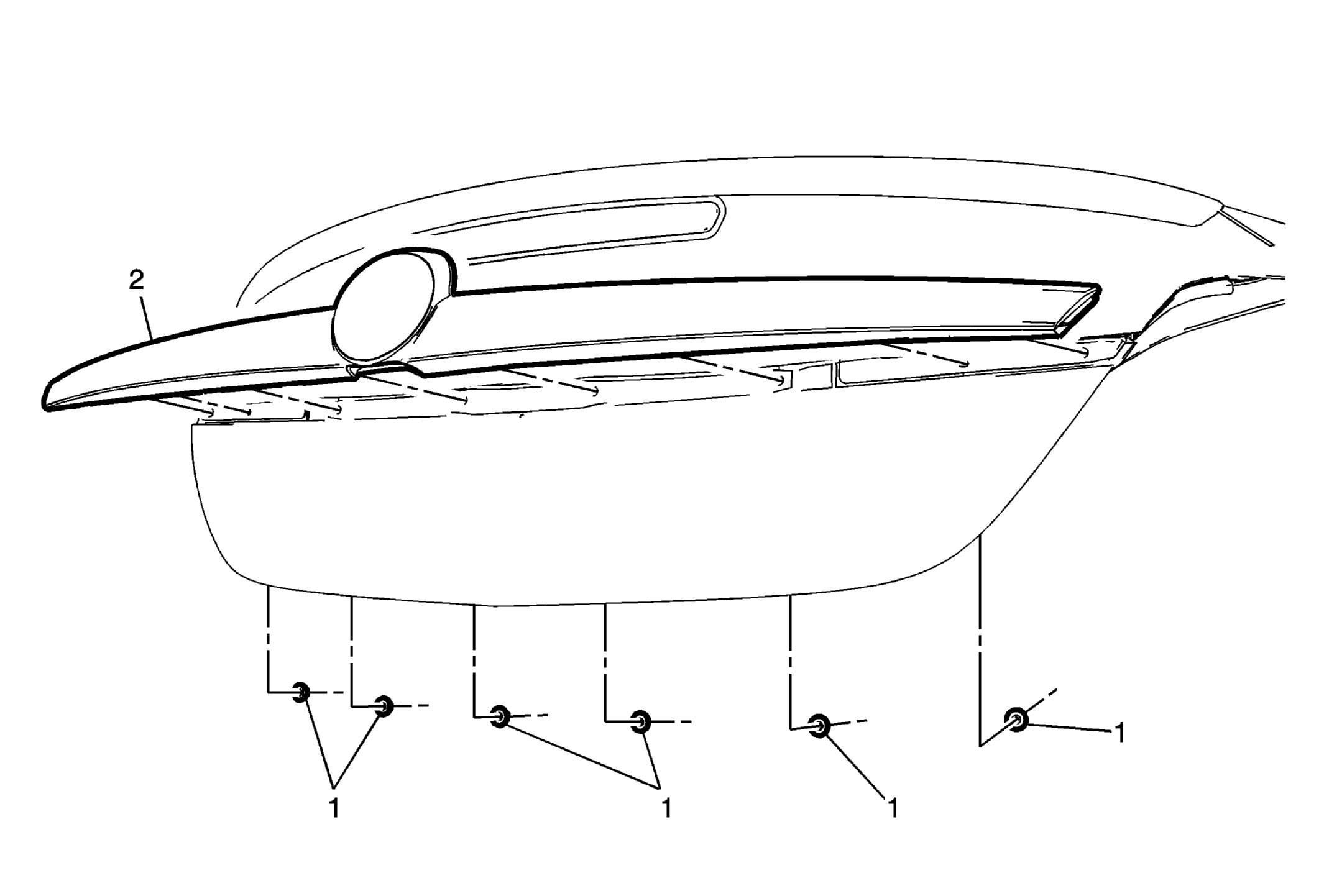

Fig 1: Rear Closure Center Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Rear Closure Center Applique Fastener (Qty:6) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Rear Closure Center Applique Procedure Release the two retainers at each end of the rear closure center applique. Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

Rear Closure Center Applique Fastener (Qty:6)

CAUTION:

Tighten
6 N.m (53 lb in)

Rear Closure Center Applique

Procedure
