Rear Bumper Lower Fascia Replacement

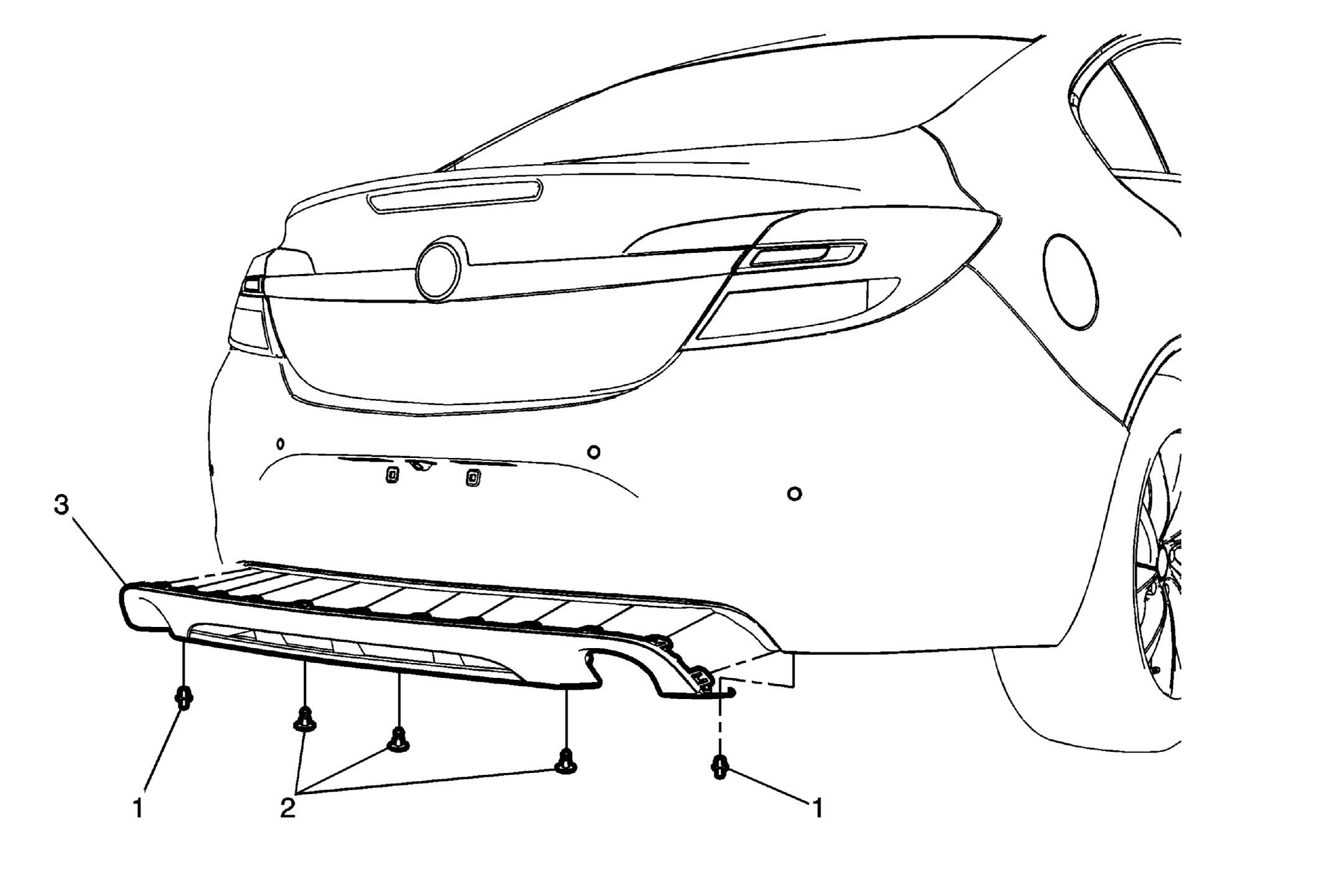

Fig 1: Rear Bumper Lower Fascia

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Bumper Lower Fascia Plastic Rivet (Qty:2)
2	Rear Bumper Lower Fascia Retainer (Qty:3)
3	Rear Bumper Lower Fascia Procedure  Use a small flat-bladed tool to release the rear bumper lower fascia locking retainers from the rear bumper fascia.
