Rear Side Door Wiring Harness Replacement

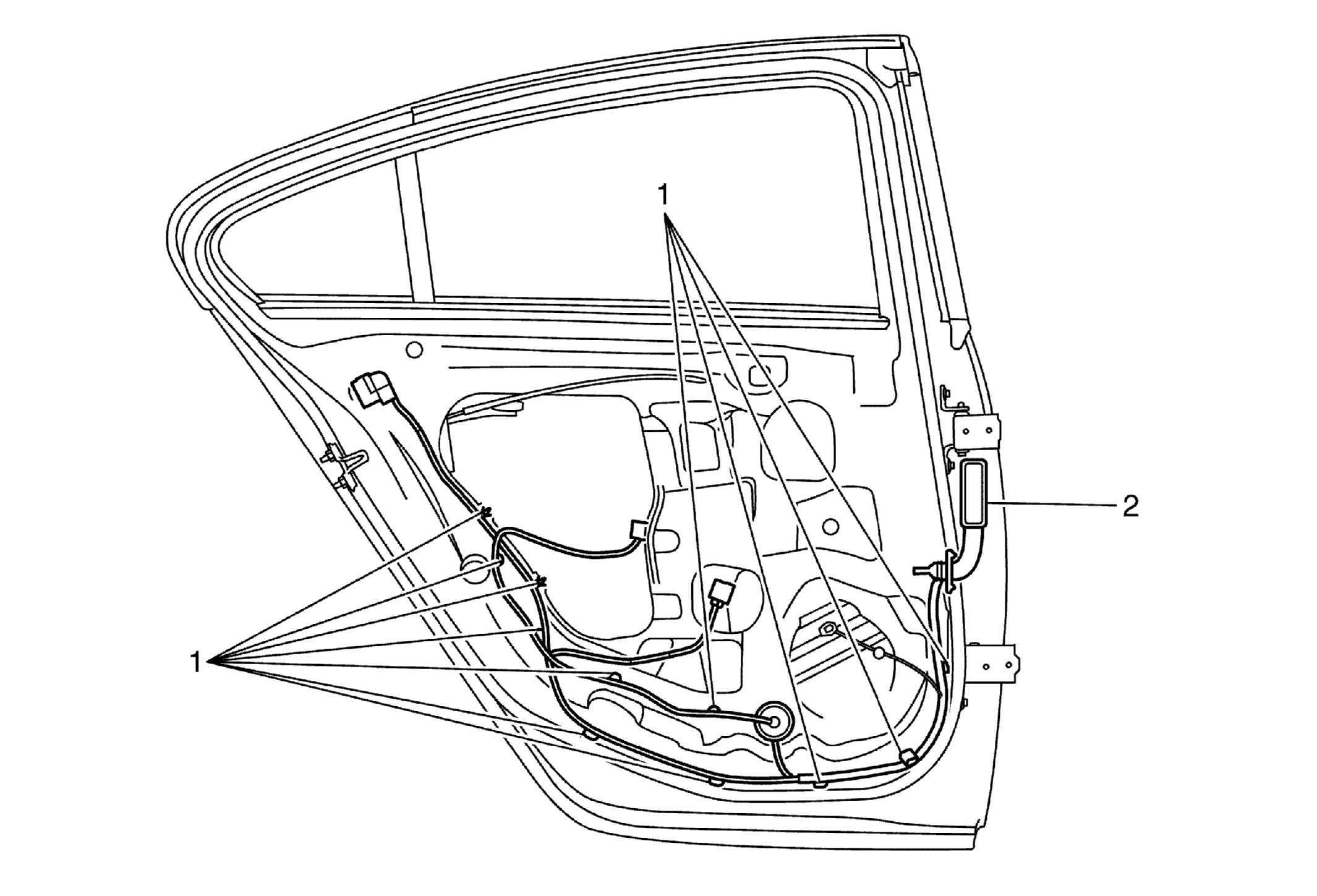

Fig 1: Rear Side Door Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement . Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) .
1	Rear Side Door Wiring Harness Retainer
2	Rear Side Door Wiring Harness Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Rear Side Door Wiring Harness Retainer

Rear Side Door Wiring Harness
Procedure
Disconnect the electrical connector.
