Rear Side Door Upper Hinge and Lower Hinge Replacement

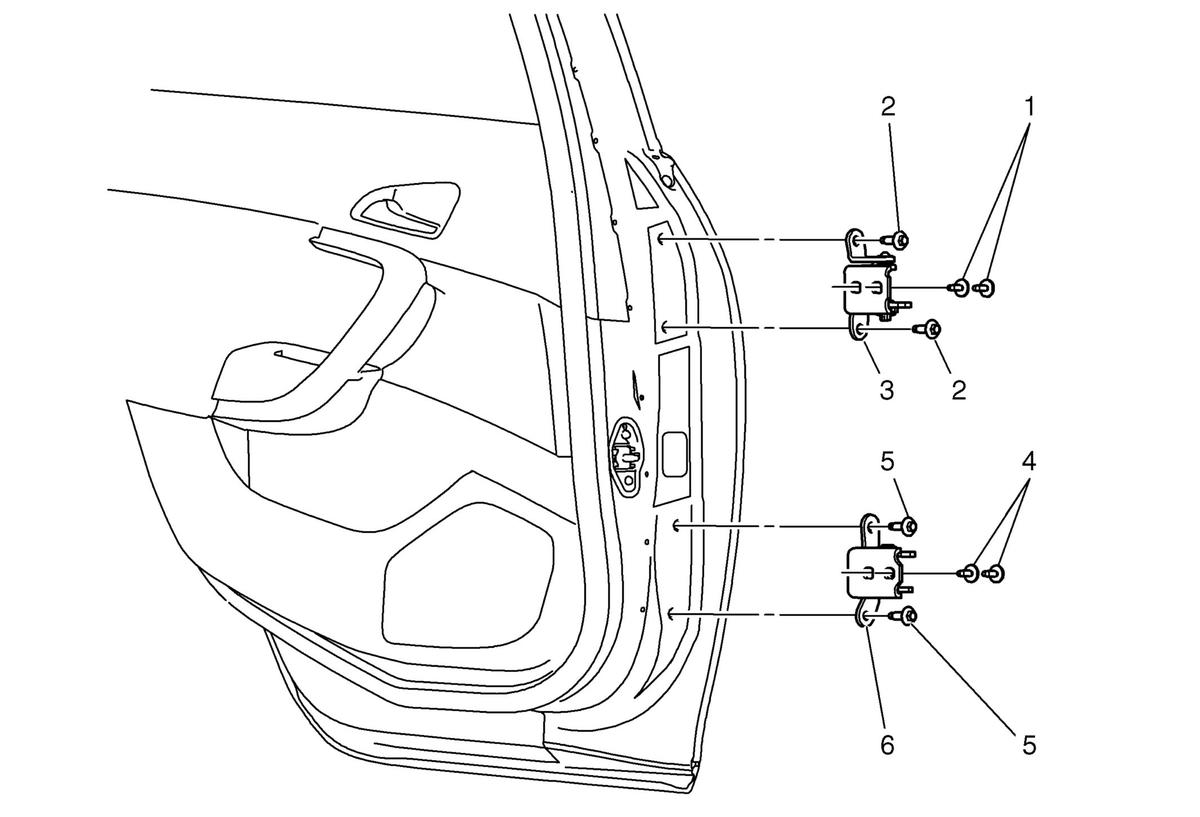

Fig 1: Rear Side Door Upper Hinge And Lower Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Upper Hinge to Body (Upper) (Qty:2) CAUTION: Refer to Fastener Caution . Procedure Support the door before removing the hinge fastener. Disconnect the door electrical connector. Tighten: 32 N.m (24 lb ft).
2	Rear Side Door Upper Hinge to Door Bolts (Upper) (Qty:2) Tighten 25 N.m (18 lb ft).
3	Rear Side Door Upper Hinge Procedure Check the door for proper alignment, adjust as necessary.
4	Rear Side Door Lower Hinge to Body Bolts (Lower) (Qty: 2) Tighten 25 N.m (18 lb ft).
5	Rear Side Door Lower Hinge to Door Body (Lower) (Qty: 2) Tighten 32 N.m (24 lb ft).
6	Rear Side Door Lower Hinge Procedure Inspect the door for proper operation and alignment. Refer to Rear Side Door Adjustment .
