Rear Side Door Replacement

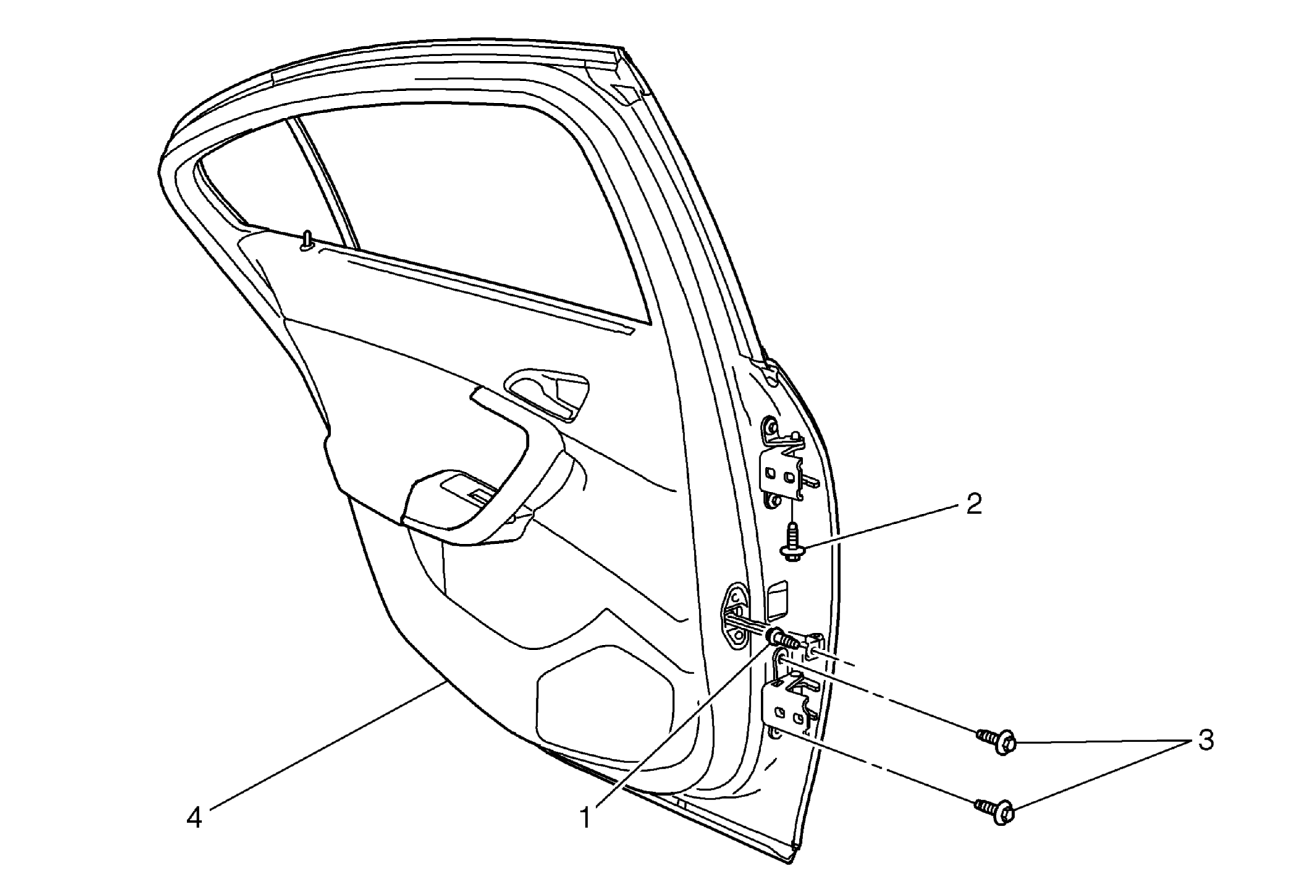

Fig 1: Rear Side Door & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Check Link Fastener CAUTION: Refer to Fastener Caution . Procedure Disconnect the door electrical connector. Support the door before removing the hinge fastener. Tighten 22 N.m (16.2 lb ft)
2	Rear Side Door Hinge Fastener to Hinge Tighten 25 N.m (18.4 lb ft)
3	Rear Side Door Hinge Fastener to Door (Qty:2) Tighten 25 N.m (18.4 lb ft)
4	Rear Side Door Procedure With the aid of an assistant, remove the door. When replacing the door it is necessary to transfer all of the internal components. Inspect the door for proper operation and alignment. Refer to Rear Side Door Adjustment .
