Hood Primary Latch Release Cable Handle Replacement

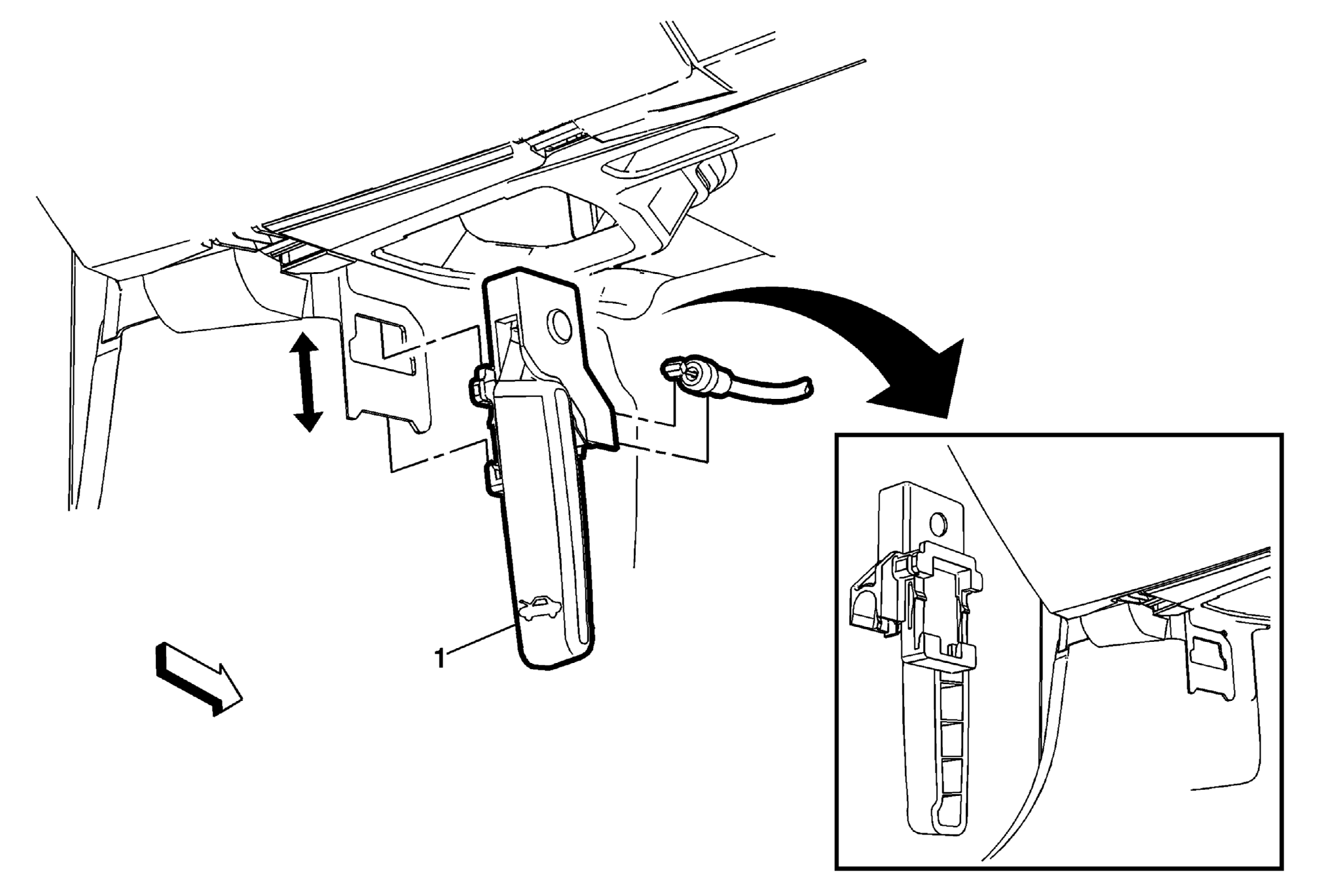

Fig 1: Hood Primary Latch Release Cable Handle
GM3213499Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Hood Primary Latch Release Cable Handle

Procedure

  1. Press the hood primary latch release cable handle downward and pull outward to release the retainers from the instrument panel bracket.
  2. Disconnect the hood primary latch release cable from the hood primary latch release cable handle.
