Front or Rear Side Door Lower Weatherstrip Replacement

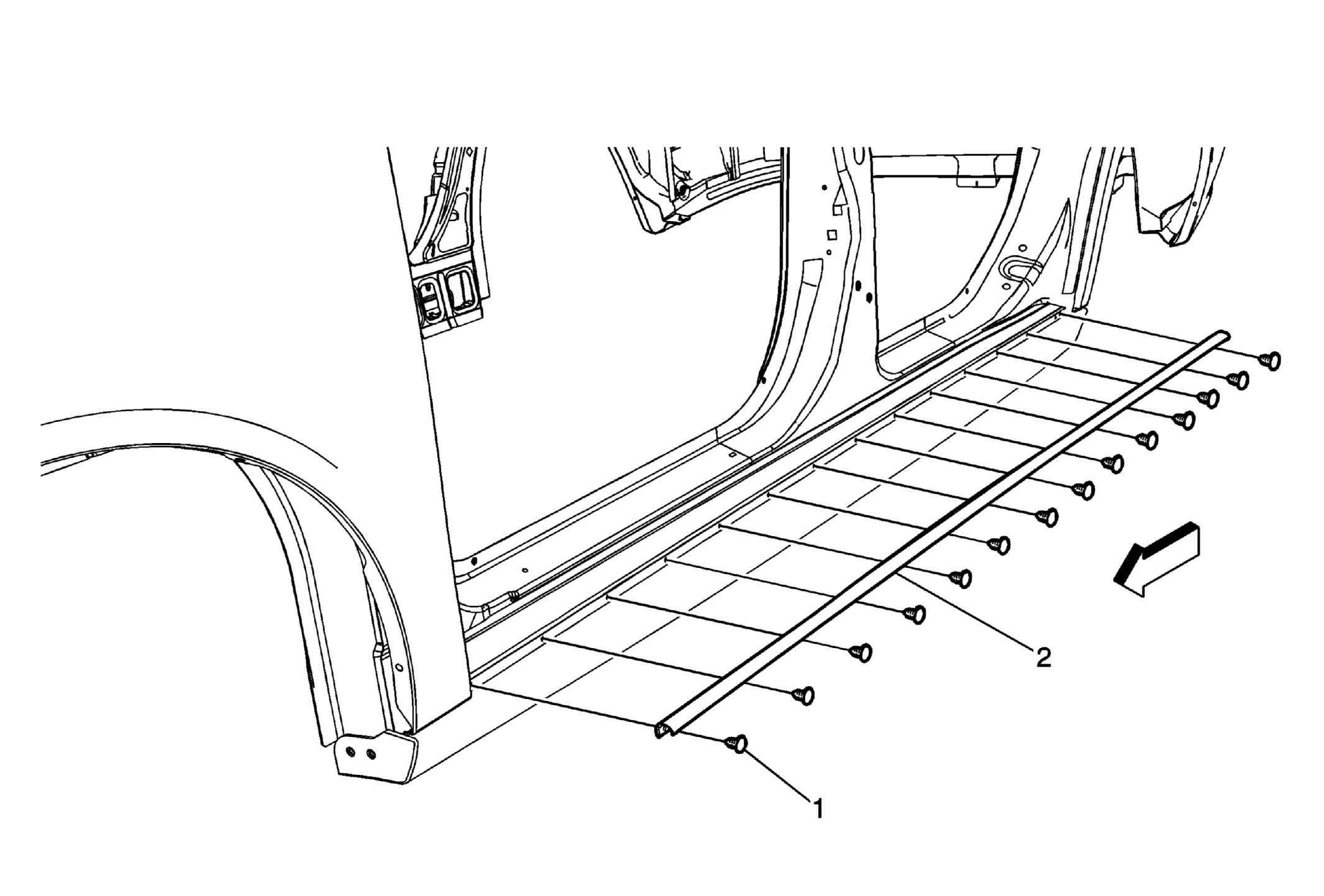

Fig 1: Identifying Front or Rear Side Door Lower Weatherstrip Components
GM2197779Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front and Rear Door Lower Weatherstrip Retainer (Qty:17)

Procedures

  1. Open both side doors on the side the weatherstrip is being serviced.
  2. Use a suitable tool in the removal of the retainers.
2 Front and Rear Door Lower Weatherstrip
