Front Side Door Wiring Harness Replacement

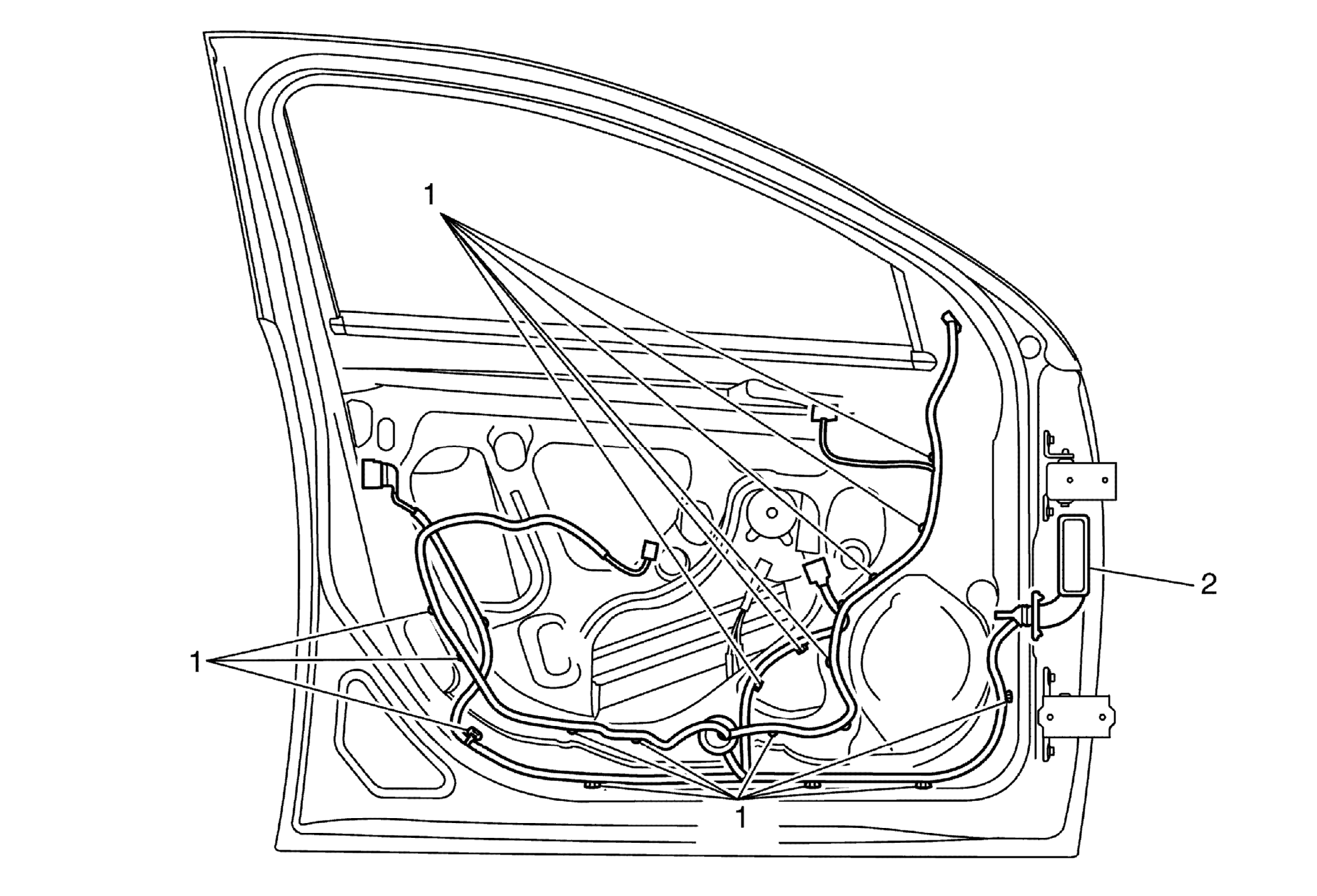

Fig 1: Front Side Door Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement . Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) .
1	Front Side Door Wiring Harness Retainer
2	Front Side Door Wiring Harness Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Front Side Door Wiring Harness Retainer

Front Side Door Wiring Harness
Procedure
Disconnect the electrical connector.
