Front Side Door Upper Hinge and Lower Hinge Replacement

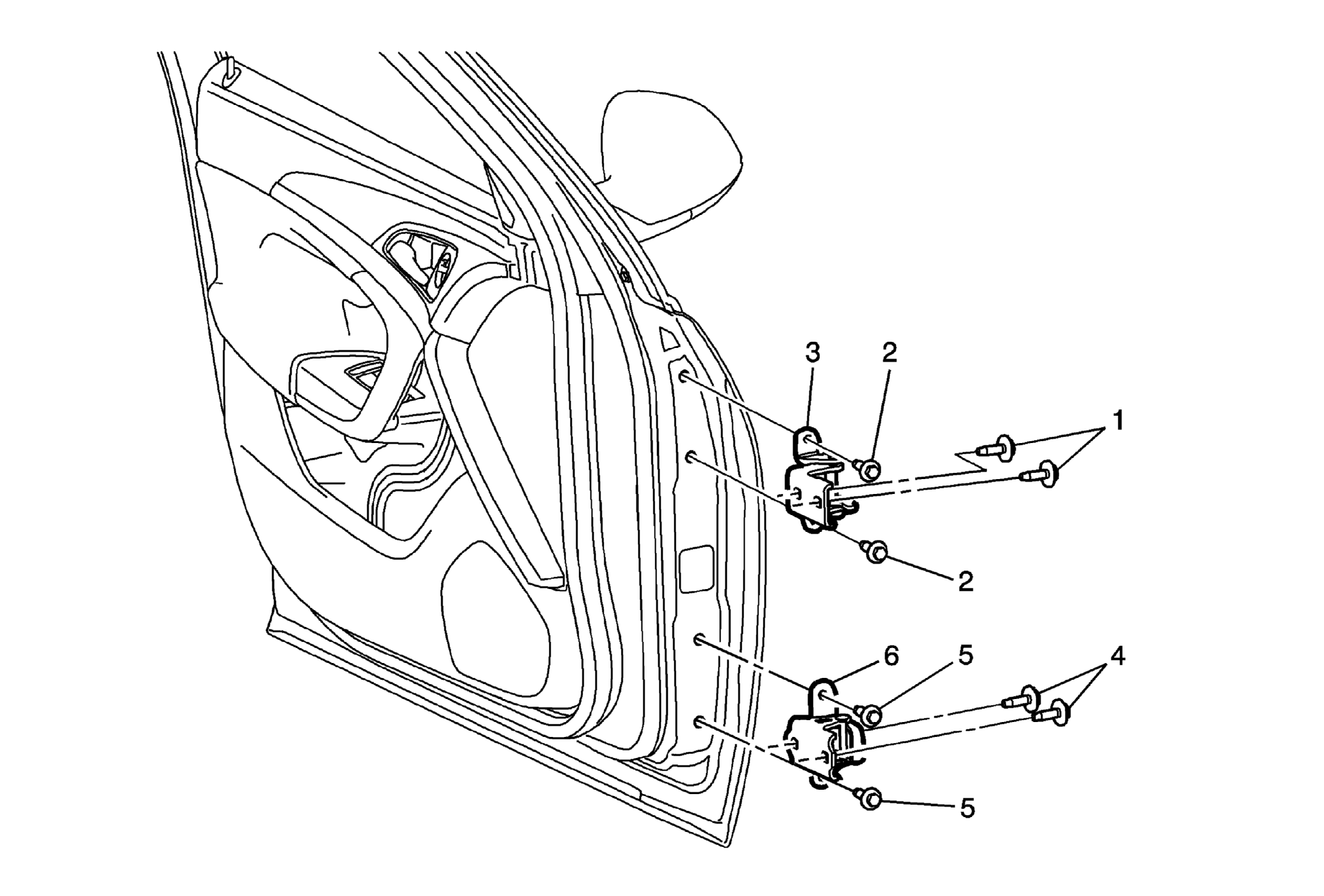

Fig 1: Front Side Door Upper Hinge And Lower Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Upper Hinge to Body Bolts (Qty:2) CAUTION: Refer to Fastener Caution . Procedure Support the door before removing the hinge fastener. Disconnect the door electrical connector. Tighten 32 N.m (24 lb ft)
2	Front Side Door Upper Hinge to Door Bolts (Qty:2) Tighten 25 N.m (18 lb ft)
3	Front Side Door Upper Hinge
4	Front Side Door Lower Hinge to Body Bolts (Qty:2) Tighten 32 N.m (24 lb ft)
5	Front Side Door Lower Hinge to Door Bolts (Qty:2) Tighten 25 N.m (18 lb ft)
6	Front Side Door Lower Hinge Procedure Inspect the door for proper operation and alignment. Refer to Front Side Door Adjustment .
