Front Side Door Replacement

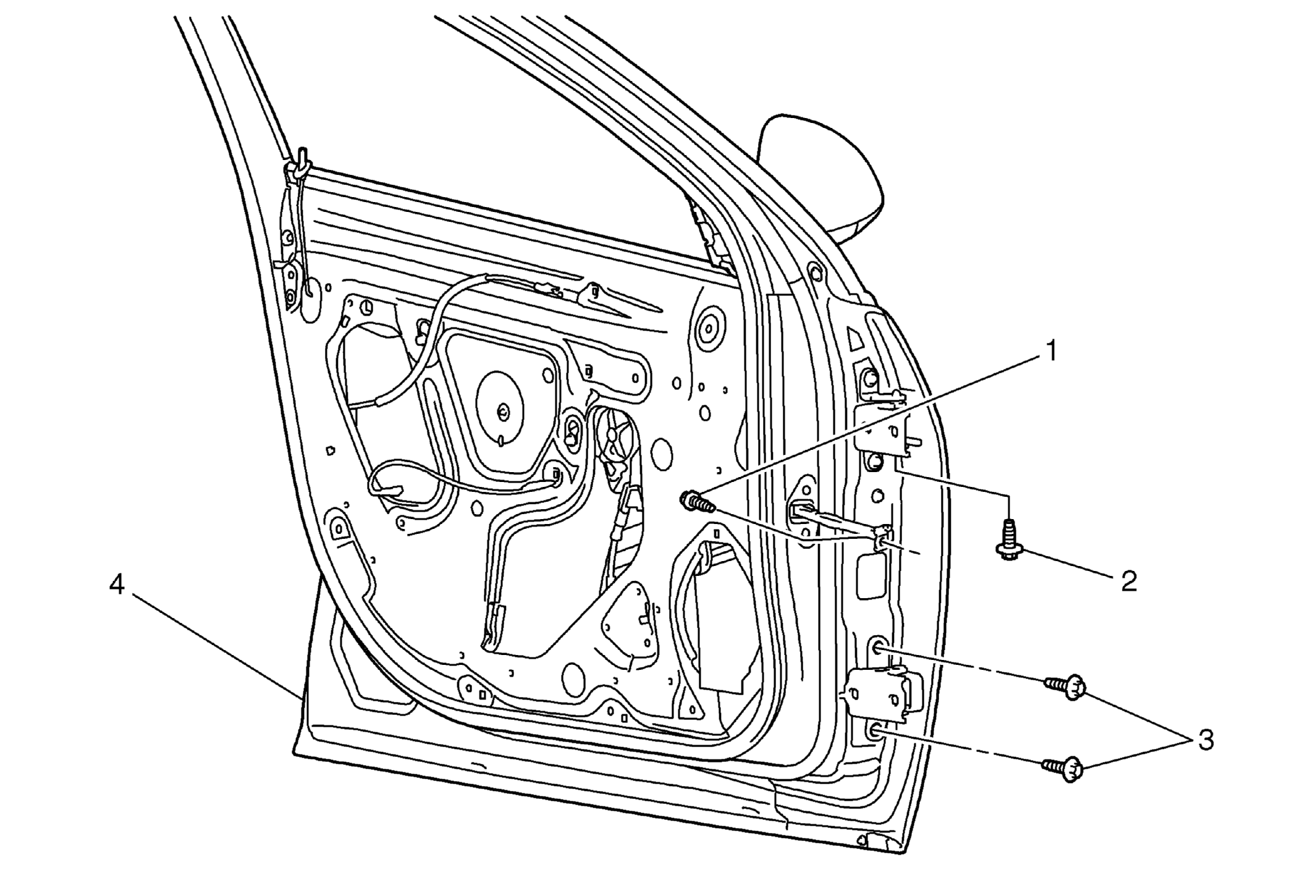

Fig 1: Front Side Door & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Check Link Fastener CAUTION: Refer to Fastener Caution . Procedure Disconnect the door electrical connector. Support the door before removing the hinge fastener. Tighten 22 N.m (16 lb ft)
2	Front Side Door Upper Hinge Fastener to Hinge Tighten 25 N.m (18 lb ft)
3	Front Side Door Hinge Fastener to Door (Qty:2) Tighten 25 N.m (18 lb ft)
4	Front Side Door Assembly Procedure With the aid of an assistant, remove the door. When replacing the door it is necessary to transfer all of the internal components. Inspect door for proper alignment. Refer to Front Side Door Adjustment .
