Dash Panel Brace Replacement

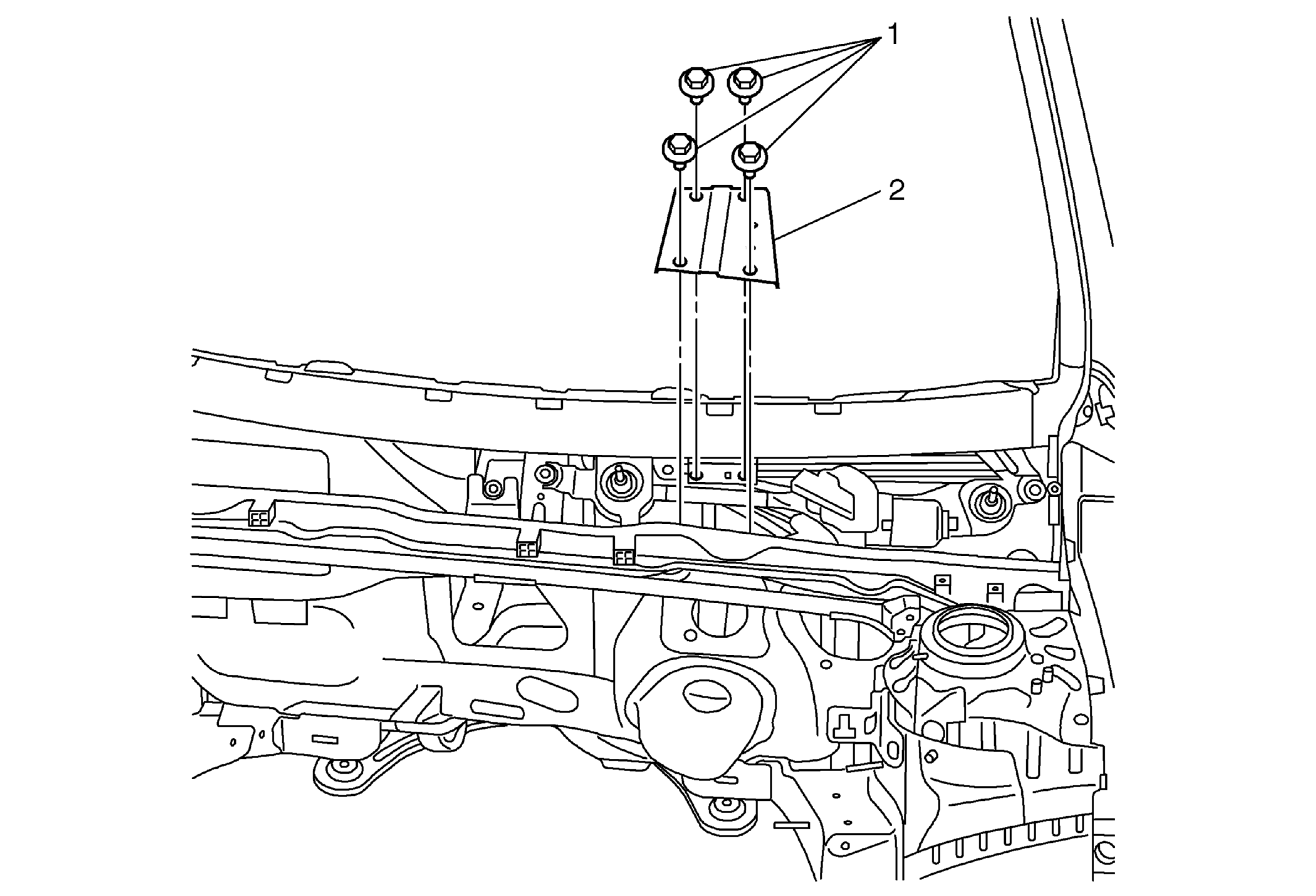

Fig 1: Dash Panel Brace And Fasteners
GM2019725Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the air inlet panel. Refer to Air Inlet Grille Panel Replacement .
1 Dash Panel Brace Fastener (Qty:4)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Dash Panel Brace
