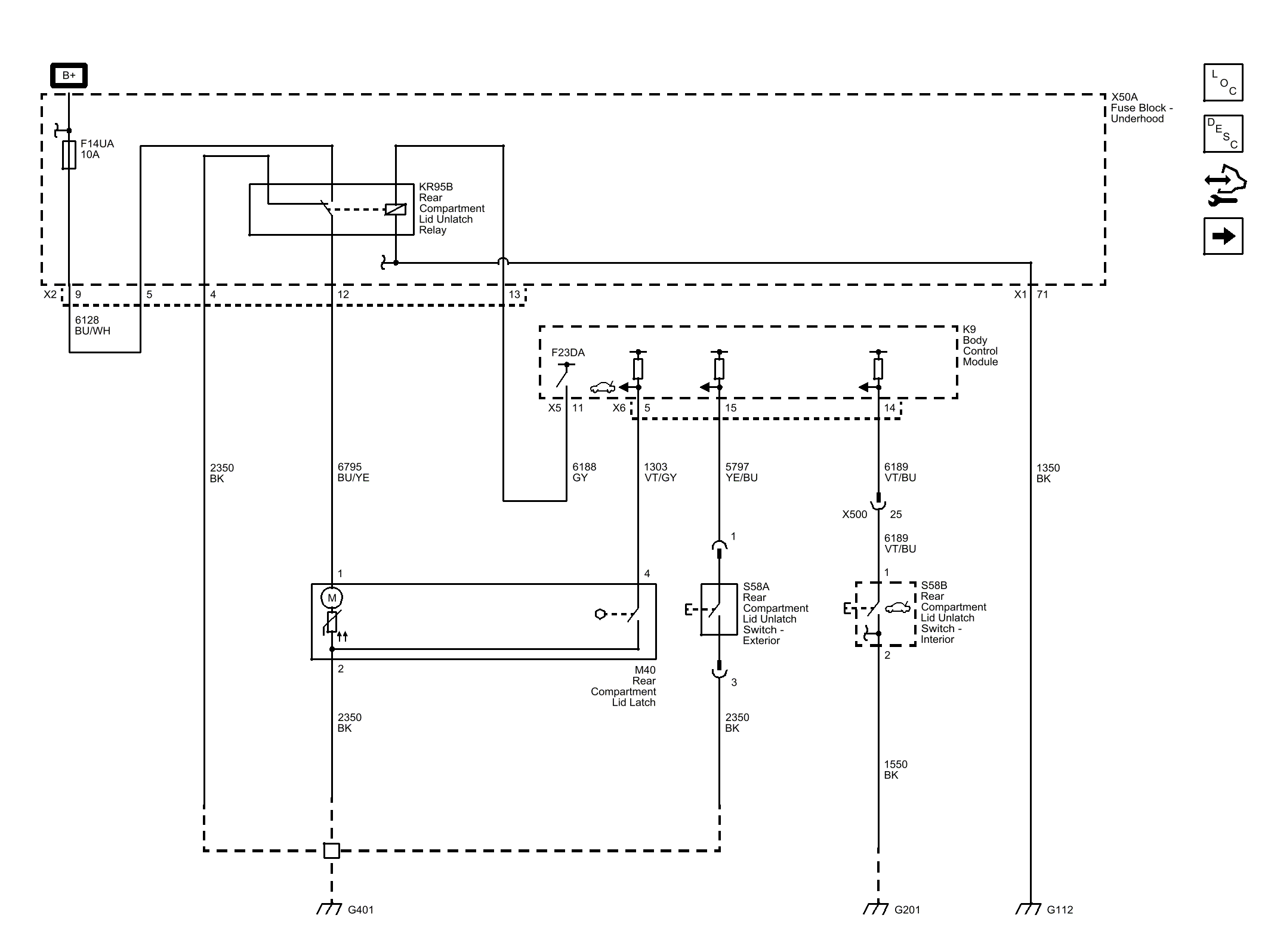

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Door Lock System And Release Systems >> Schematic Wiring Diagrams >> Release Systems Wiring Schematics >> Rear Compartment (except CZ2)
