Rear Side Door Lock Replacement

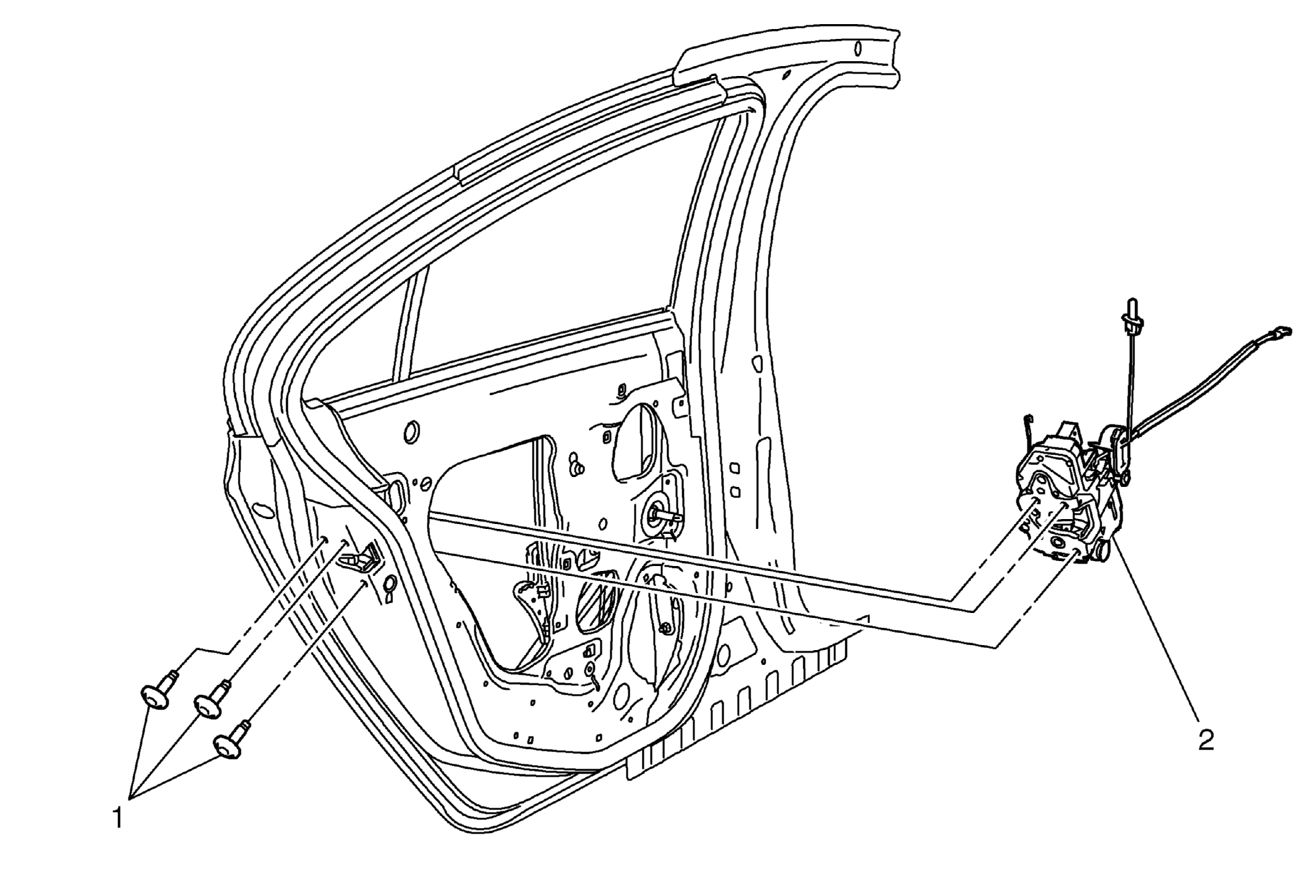

Fig 1: Rear Side Door Lock & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Rear Side Door Lock Fastener (Qty:3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Side Door Lock Procedure Release the shift linkage lever clip. Disconnect the door lock electrical connector. TIP: In order to prevent outside handle lever pre-load, latch, outside handle, handle bracket and cover/cap shall be fully secured to the door prior to securing integral latch clip to outside handle rod. Integral latch clip shall be in the full up position while securing to outside handle rod.

Callout

Component Name

Preliminary Procedure
Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement .

Rear Side Door Lock Fastener (Qty:3)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Rear Side Door Lock

Procedure

Release the shift linkage lever clip.
Disconnect the door lock electrical connector.

TIP: In order to prevent outside handle lever pre-load, latch, outside handle, handle bracket and cover/cap shall be fully secured to the door prior to securing integral latch clip to outside handle rod. Integral latch clip shall be in the full up position while securing to outside handle rod.
