Rear Compartment Lid Release Switch Replacement (Interior)

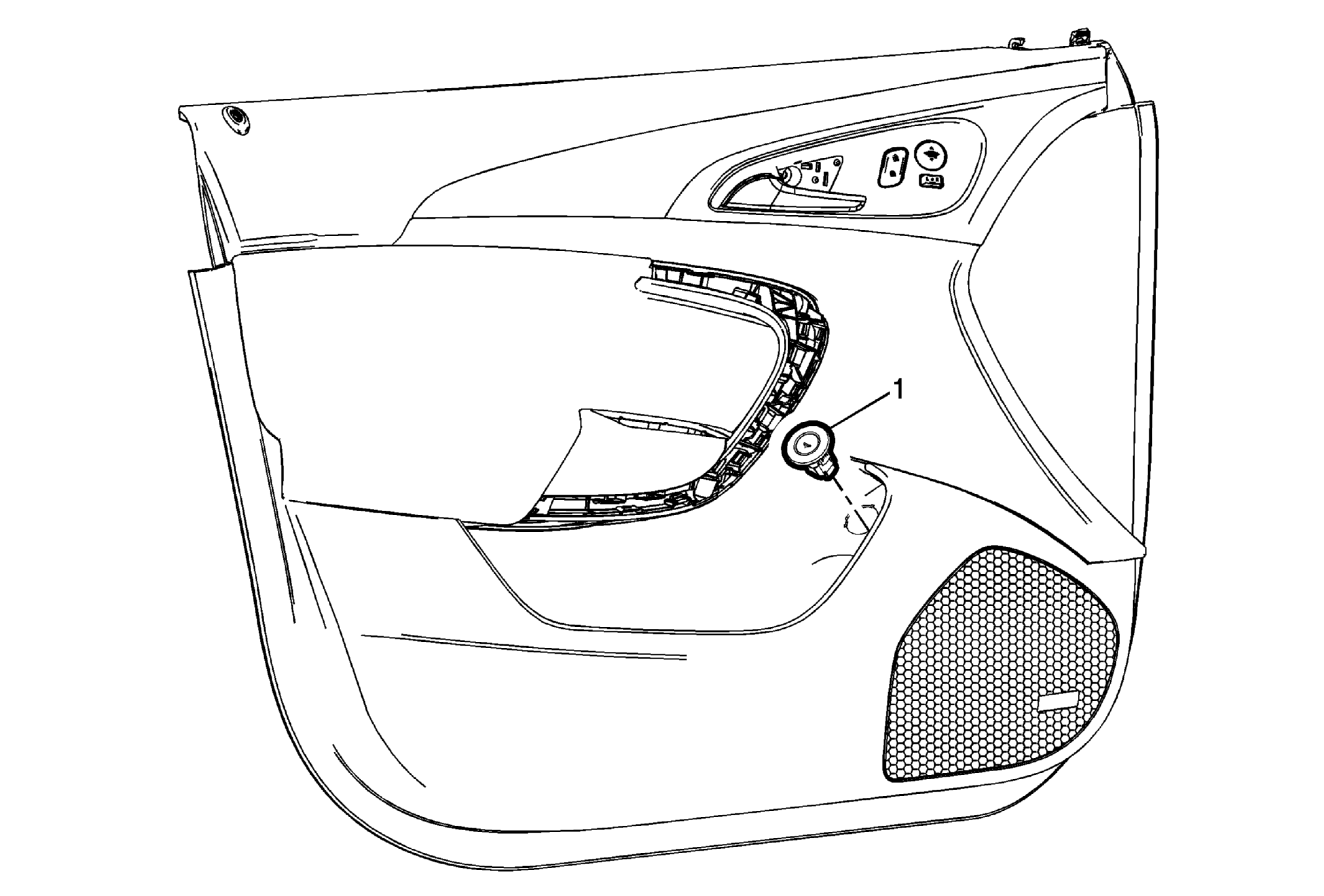

Fig 1: Rear Compartment Lid Release Switch (Interior)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Panel Replacement .
1	Rear Compartment Lid Release Switch Assembly Procedure Disconnect the electrical connector. Push the 2 tabs in to release the switch from the front side door trim.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim. Refer to Front Side Door Trim Panel Replacement .

Rear Compartment Lid Release Switch Assembly

Procedure
