Front Side Door Outside Handle Bracket Replacement (Base)

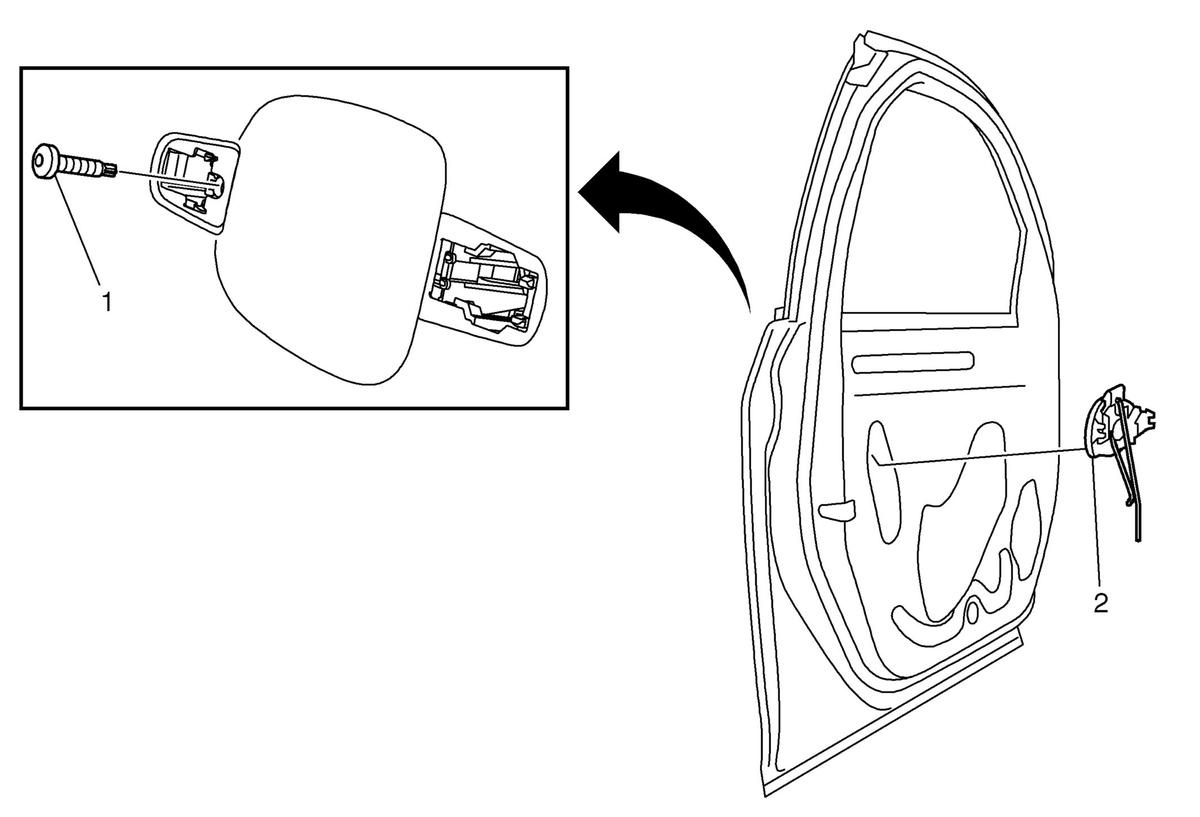

Fig 1: Front Side Door Outside Handle Bracket (Base)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement . Remove the front side door outside handle. Refer to Front Side Door Outside Handle Replacement (Base) .
1	Front Side Door Outside Handle Bracket Fastener CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Front Side Door Outside Handle Bracket Procedure Release front side door outside handle rod mechanism at shift linkage lever clip. Release the front side door lock cylinder rod from the door lock. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement .
Remove the front side door outside handle. Refer to Front Side Door Outside Handle Replacement (Base) .

Front Side Door Outside Handle Bracket Fastener

CAUTION:

Tighten
5 N.m (44 lb in)

Front Side Door Outside Handle Bracket

Procedure

Release front side door outside handle rod mechanism at shift linkage lever clip.
Release the front side door lock cylinder rod from the door lock.
Transfer components as necessary.
